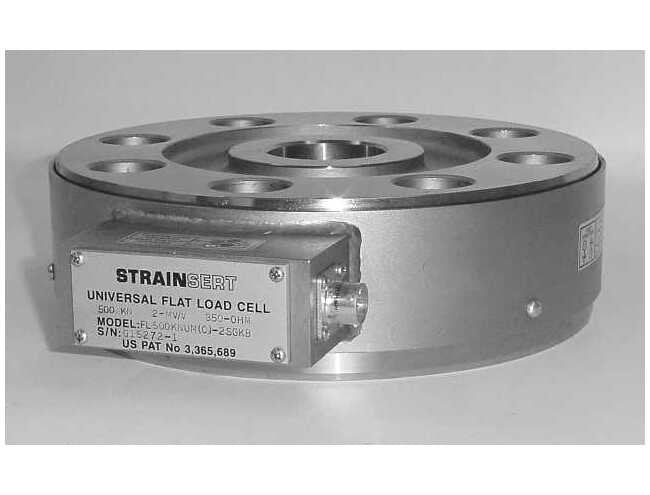

Universal Metric Load Cells
Universal Metric Load Cells
SKU:LOA-204245
High-precision Universal Metric Load Cells for tension and compression measurement. Durable, accurate, and versatile.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Universal Metric Load Cells
$1,899.99
Quantity: 1
Claim Your Seller Account
Universal Metric Load Cells
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Universal Metric Load Cells are versatile and reliable devices designed to measure forces in both tension and compression. With a load capacity of up to 1,780 kN, these load cells offer high precision and durability. The low profile, rugged construction, and high static overload capacity make them ideal for a wide range of applications. Additionally, the pressure compensating sealed strain gages ensure accurate and consistent readings in various conditions. Manufactured to meet stringent industry standards, these load cells are a dependable choice for both consumer and institutional buyers.
Product Specifications
Dimensional Drawing Dimensional Drawing
Metric Universal Load Cell
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal in tension and compression are obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.15% FS | Precision ±0.10% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.10% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Performance Specs Safe Static Overload Without Zero Shift
200%FS
Specifications A Diameter
143 mm
Specifications B Diameter
270 mm
Specifications C Diameter
419 mm
Specifications D Diameter
432 mm
Specifications F Height
38.1 mm
Specifications G Width
95.3 mm
Specifications H Height
114 mm
Specifications K Inside Diameter
30.96 mm
Specifications K Outside Diameter
46.04 mm
Specifications Lifting Holes Bc Diameter
117.5 mm
Specifications Load Capacity
400,000 lb | 1,780 kN
Specifications L Diameter
343 mm
Specifications Material Of Construction
Alloy Steel
Specifications N Depth Of Hole
34.9 mm
