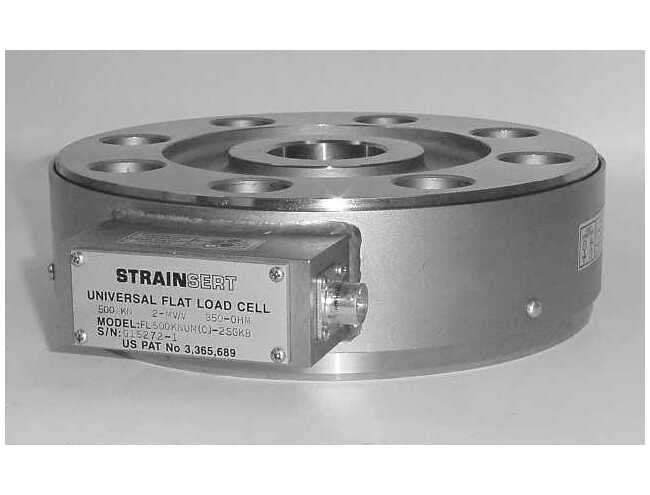

The Universal Metric Load Cells are engineered for precise force measurement in both tension and compression. With a load capacity of 150,000 lb (667 kN), these cells feature low deflection, high frequency dynamic load sensing, and pressure compensating sealed strain gages. Their compact and lightweight design, along with robust construction, ensures reliable performance in diverse industrial applications. Adhering to stringent quality standards, these load cells offer exceptional accuracy and durability, making them ideal for demanding environments.
Product Specifications
Dimensional Drawing Dimensional Drawing
Metric Universal Load Cell
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal in tension and compression are obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.15% FS | Precision ±0.10% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.10% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Performance Specs Safe Static Overload Without Zero Shift
200%FS
Specifications A Diameter
111 mm
Specifications B Diameter
178 mm
Specifications C Diameter
273 mm
Specifications D Diameter
283 mm
Specifications F Height
36.1 mm
Specifications G Width
95.3 mm
Specifications H Height
88.9 mm
Specifications K Inside Diameter
20.64 mm
Specifications K Outside Diameter
30.96 mm
Specifications Lifting Holes Bc Diameter
79.4 mm
Specifications Load Capacity
150,000 lb | 667 kN
Specifications L Diameter
222 mm
Specifications Material Of Construction
Alloy Steel
Specifications N Depth Of Hole
28.6 mm
