Universal Secondary Chassis Mount Power Transformer - Series F-90
Universal Secondary Chassis Mount Power Transformer - Series F-90
SKU:POW-df73c8
Enhance circuit performance with the Universal Secondary Power Transformer - Series F-90, offering flexible voltage selection for reliable power supply in diverse electronic applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Universal Secondary Chassis Mount Power Transformer - Series F-90
$89.99
Quantity: 1
Claim Your Seller Account
Universal Secondary Chassis Mount Power Transformer - Series F-90
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

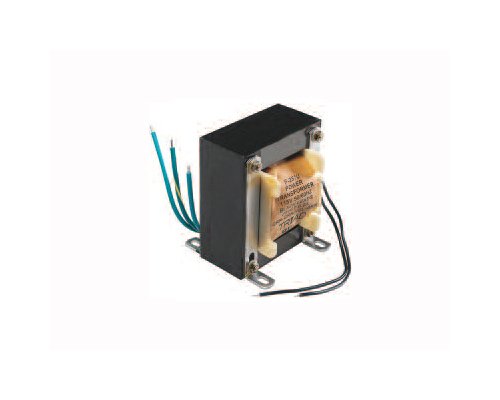

The Universal Secondary Chassis Mount Power Transformer from the Series F-90 is designed for optimal performance in full wave center tap or bridge circuits with silicon or selenium rectifiers, providing flexible secondary voltage selection via primary taps. Ideal for applications requiring DC voltages for transistors, this transformer offers a range of output voltages and is compatible with both full wave center tap and bridge rectifiers. With a primary voltage option of 115V or 230V, and secondary voltages ranging from 0 to 26V, this transformer ensures reliable power supply for various institutional and commercial electronic devices.
Product Specifications
Specifications Case Type
U
Specifications Connections
Leads
Specifications Depth D
2 5/8 in
Specifications Height H
3 3/8 in
Specifications Mounting Depth
2 3/16 in
Specifications Mounting Hole Size
13/64 x 3/8 in
Specifications Mounting Width
2 1/4 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Secondary Current Ac
3.0 A
Specifications Secondary Voltage Ac
0 to 6.5 /13/19.5/26 V
Specifications Weight
3.50 lb
Specifications Width W
2 13/16 in
