Universal Split Tubing Ring
Universal Split Tubing Ring
SKU:PIP-444bd2
Versatile Universal Split Tubing Ring for secure suspension of copper tubes. Complies with Federal Specs A-A-1192A, WW-H-171-E, and MSS-SP-69.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Universal Split Tubing Ring
$9.99
Quantity: 1
Claim Your Seller Account
Universal Split Tubing Ring
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

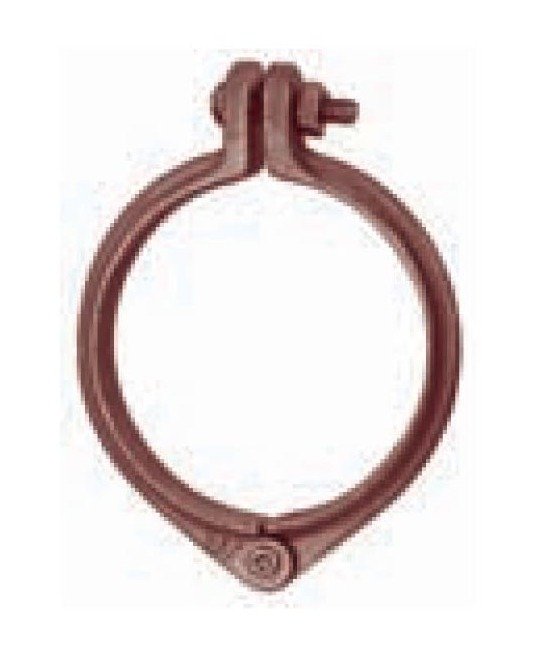

The Universal Split Tubing Ring is a versatile solution for suspending non-insulated stationary copper tubes in various installations. Crafted from malleable iron with a durable copper plated finish, this tubing hanger is designed to support tubing sizes ranging from 1/2" to 3". With a maximum load capacity of 300 lbs, this ring ensures secure and reliable tubing suspension. Compliant with Federal Specification A-A-1192A (Type 11), WW-H-171-E (Type 11), and MSS-SP-69 (Type 11), this product guarantees quality and reliability for your projects. Pair it with a rod socket or turnbuckle adjuster for enhanced functionality.
Product Specifications
Specifications Bolt Size
1/4 x 1 inches

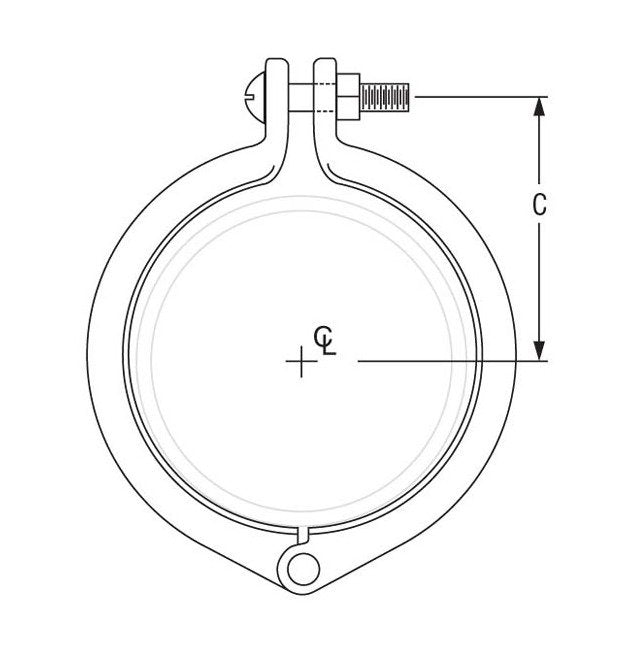

Specifications Dimension C
1 1/8 inches
Specifications Finish
Copper Plated
Specifications Material
Malleable Iron
Specifications Maximum Load
300 lbs
Specifications Tube Size
1 inches
Specifications Weight
0.12 lbs
