Universal Split Tubing Ring - Copper Plated, Size Range 1/2"-3"
Universal Split Tubing Ring - Copper Plated, Size Range 1/2"-3"
SKU:PIP-87f157
Versatile Split Tubing Ring for copper tubes, sizes 1/2"-3", with 200 lbs load capacity - meets Federal Standards.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Universal Split Tubing Ring - Copper Plated, Size Range 1/2"-3"
$12.99
Quantity: 1
Claim Your Seller Account
Universal Split Tubing Ring - Copper Plated, Size Range 1/2"-3"
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

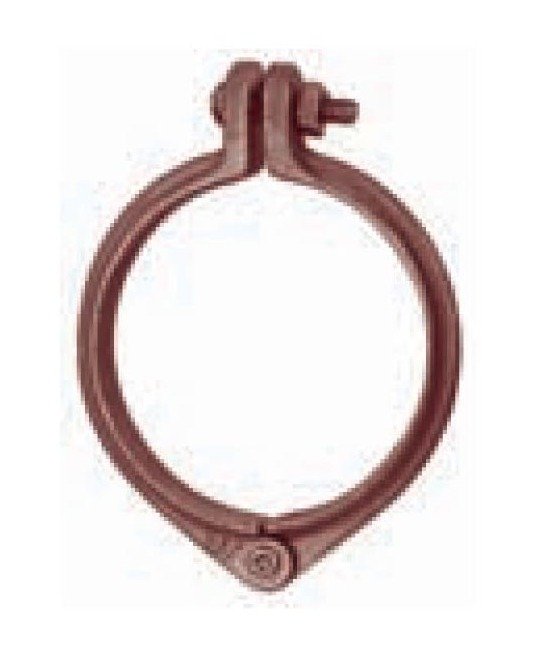

The Universal Split Tubing Ring is a versatile solution for suspending non-insulated stationary copper tubes. Made of malleable iron with a copper-plated finish, this ring is designed to support tubing sizes ranging from 1/2" to 3". With a maximum load capacity of 200 lbs, it ensures secure installations and can be used with various accessories like rod sockets or turnbuckle adjusters. Compliant with Federal Specification A-A-1192A (Type 11), WW-H-171-E (Type 11), and MSS-SP-69 (Type 11) standards, this split tubing ring offers durability and reliability for a wide range of applications.
Product Specifications
Specifications Bolt Size
#10 x 3/4 inches

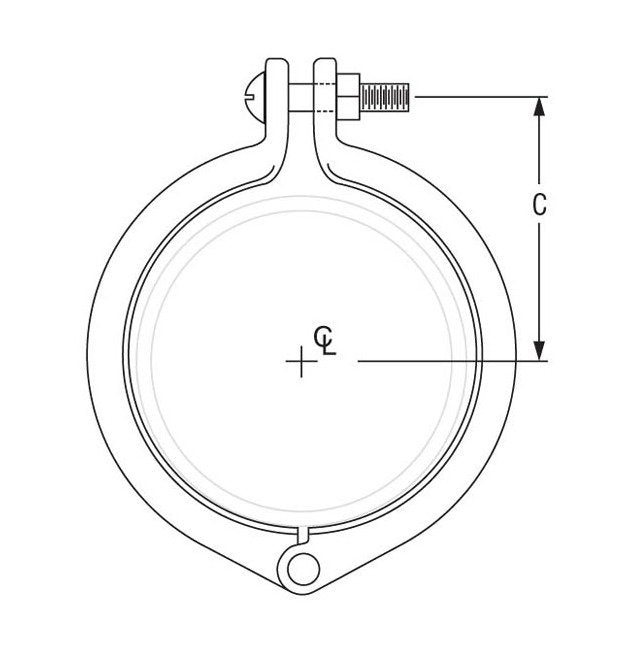

Specifications Dimension C
3/4 inches
Specifications Finish
Copper Plated
Specifications Material
Malleable Iron
Specifications Maximum Load
200 lbs
Specifications Tube Size
1/2 inches
Specifications Weight
0.07 lbs
