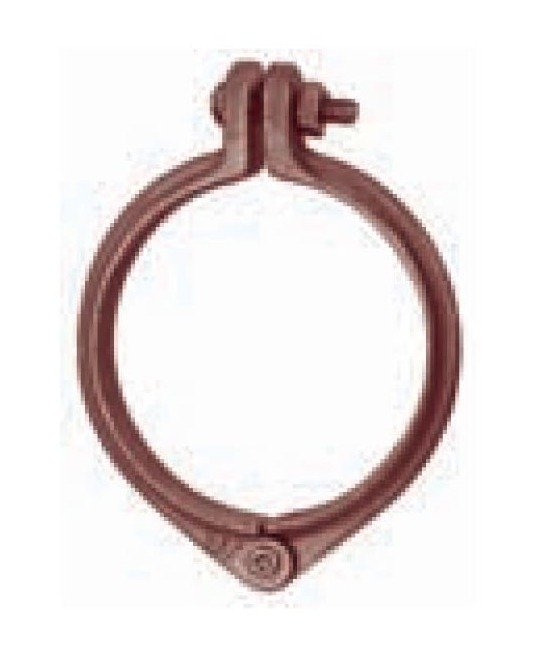

Universal Split Tubing Ring for Copper Tubing Suspension
Universal Split Tubing Ring for Copper Tubing Suspension
SKU:PIP-5d744e
Securely suspend copper tubing with our Universal Split Tubing Ring. Support range: 1/2" to 3". Malleable iron construction, copper plated finish, holds up to 300 lbs.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Universal Split Tubing Ring for Copper Tubing Suspension
$12.99
Quantity: 1
Claim Your Seller Account
Universal Split Tubing Ring for Copper Tubing Suspension
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Universal Split Tubing Ring is a versatile solution for suspending non-insulated stationary copper tubes ranging from 1/2" to 3". Crafted from malleable iron with a copper plated finish, this tubing ring is designed for secure support, holding a maximum load of 300 lbs. Compliant with Federal Specification A-A-1192A (Type 11), WW-H-171-E (Type 11), and MSS-SP-69 (Type 11), it offers a universally adaptable design compatible with rod sockets or turnbuckle adjusters, ensuring easy installation and reliable performance in various applications.
Product Specifications
Specifications Bolt Size
1/4 x 1 inches

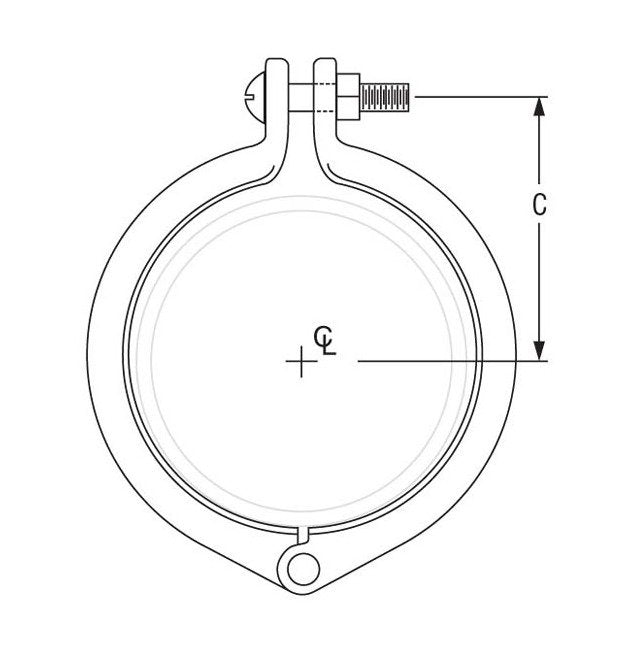

Specifications Dimension C
7/8 inches
Specifications Finish
Copper Plated
Specifications Material
Malleable Iron
Specifications Maximum Load
300 lbs
Specifications Tube Size
3/4 inches
Specifications Weight
0.09 lbs
