Universal Standard 3-Beam Multibeam Safety Light Grid Control
Universal Standard 3-Beam Multibeam Safety Light Grid Control
SKU:SAF-aab249
Enhance safety with the Universal Standard 3-Beam Multibeam Safety Light Grid Control by Wieland. Optimal protection and compliance with ISO standards for industrial applications.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Universal Standard 3-Beam Multibeam Safety Light Grid Control
$159.99
Quantity: 1
Claim Your Seller Account
Universal Standard 3-Beam Multibeam Safety Light Grid Control
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

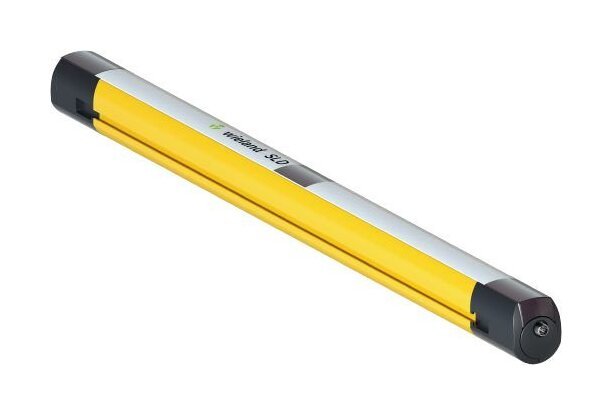

The Universal Standard 3-Beam Multibeam Safety Light Grid Control by Wieland, model SLD-4US3-0-00, offers precise sensor elements with automatic start functionality. With a sensor width of 52mm and a protective field height of 800mm, this light grid control ensures secure operations. Compliant with ISO 13849-1 Category 4 and IEC 62061 SILCL 3 standards, it provides exceptional safety parameters for industrial settings. This product is designed for efficient safety monitoring and is IP67 rated for protection against dust and water ingress.
Product Specifications
Classification Eclass 81 Classification
27270910
Classification Etim 30 Classification
EC002549
Classification Etim 40 Classification
EC002549
Classification Etim 50 Classification
EC002549
Classification Etim 60 Classification
EC002549
Classification Etim 70 Classification
EC002549
Dimensions Height Of Sensor
64.7 mm
Dimensions Length Of Sensor
900 mm
Dimensions Sensor Width
52 mm
Function Alignment Aid
No
Function Automatic Start
Yes
Function Blanking
No
Function Cascadable
No
Function Muting With
SamosPRO COMPACT
Function Restart Interlock
No
Function Sensor Element
Transmitter and Receiver
Function With Beam Coding
No
Function With Muting Display
No
Function With Muting Function
No
Product Compliance Reach Svhc Cas Numbers
7439-92-1
Product Compliance Reach Svhc Conformity Status
Duty-To-Declare
Product Compliance Reach Svhc Substances
Lead
Product Compliance Rohs Conformity Status
Compliant with Exceptions
Product Compliance Rohs Exceptions
III-6 (a) | III-6 (b)
Safety Parameters Category Iso 13849 1
4
Safety Parameters Pl Iso 13849 1
Level e
Safety Parameters Silcl Iec 62061
3
Specifications Hot Functional Testing Hft
1
Specifications Model
SLD-4US3-0-00
Technical Data Connection Size
Connector M12
Technical Data Degree Of Protection Ip
IP67
Technical Data Maximum Output Current
380 mA
Technical Data Mission Time Tm
20 a
Technical Data Nominal Voltage
24 V
Technical Data Number Of Ossd Outputs
2
Technical Data Pfhd High Demand Mode
6.6 E-9 1/h
Technical Data Protective Field Height
800 mm
Technical Data Type Acc En 61496 1
4
Technical Data Voltage Type
Direct Current (DC)
