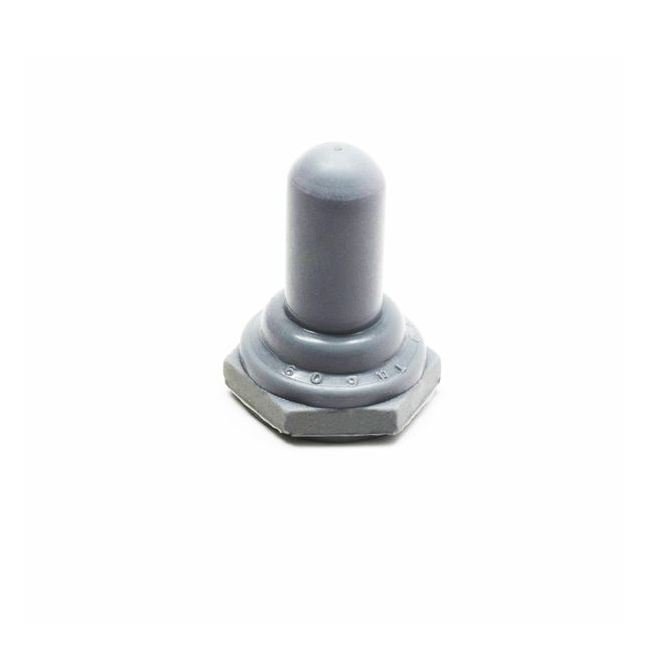

UNSC-2B Toggle Switch Boot, 0.256" Lever Diameter, 0.885" Boot Height

Name: UNSC-2B Toggle Switch Boot, 0.256" Lever Diameter, 0.885" Boot Height
Brand: ZAGO Manufacturing
SKU: SWI-dc2b9b
Price: 14.99 USD
Availability: OutOfStock

SKU:SWI-dc2b9b

Protect switches in extreme environments with the UNSC-2B Toggle Switch Boot. Resistant to water, dirt, and more. Ideal for aerospace, industrial, marine, medical, and military use.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience ultimate protection with the UNSC-2B Toggle Switch Boot. Designed to withstand harsh environments, this silicone rubber switch boot conforms to A-A-59588, GR 62 standards, offering resistance to fungus, acids, ozone, and more. With IP68 enclosure protection and corrosion-resistant mounting nut, it ensures durability in aerospace, industrial, marine, medical, and military applications.

Product Specifications

Specifications Applications

Specifications Base Width

0.625 in

Specifications Boot Height

0.885 in

Specifications Bushing Thread Size Unified

15/32-32 UNS-2B

Specifications Color

Black | Gray

Specifications Durometer

Specifications Enclosure Protection

IP68 (Under Normal Conditions)

Specifications External Pressure Range

15 psi

Specifications Internal Pressure Range

15 psi

Specifications Material

Silicone Rubber Conforms to A-A-59588, GR 62

Specifications Maximum Lever Diameter

0.256 in

Specifications Mounting Nut

Corrosion Resistant - Nickel Plated Brass

Specifications Resistant To

Specifications Temperature Range

-93 to +400 ÂºF

Specifications Thread Type

Unified National Coarse Thread (UNC)

UNSC-2B Toggle Switch Boot, 0.256" Lever Diameter, 0.885" Boot Height
