UP Series 0.625 Inch (in) Outside Diameter Standard Steel Ball Bearing Nylon Pulley

Name: UP Series 0.625 Inch (in) Outside Diameter Standard Steel Ball Bearing Nylon Pulley
Brand: Carl Stahl Sava Industries
SKU: UPS-697184
Price: 49.99 USD
Availability: OutOfStock

SKU:UPS-697184

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

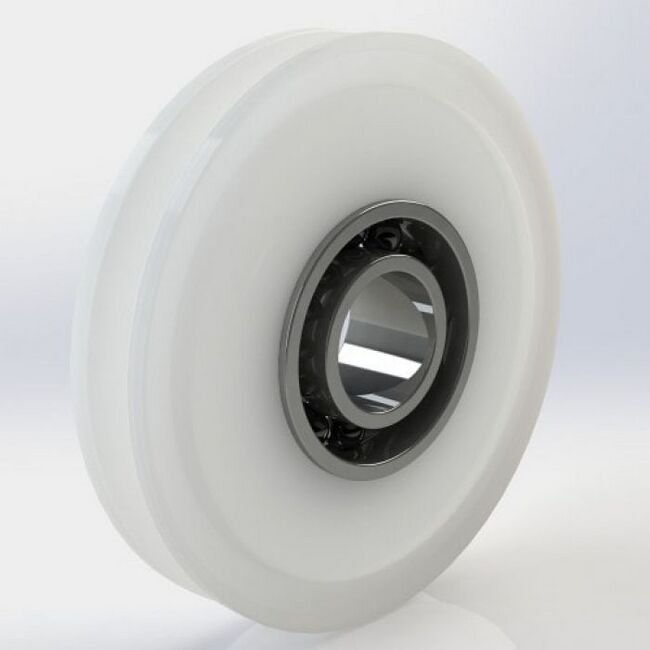

The UP Series pulleys are our standard polyamide pulleys containing a open-type precision machined ball bearing, for universal applications. These products are used for moderate load and speed application not requiring the use of more precise ground bearings.

Product Specifications

Note

This product has a minimum quantity of 5.

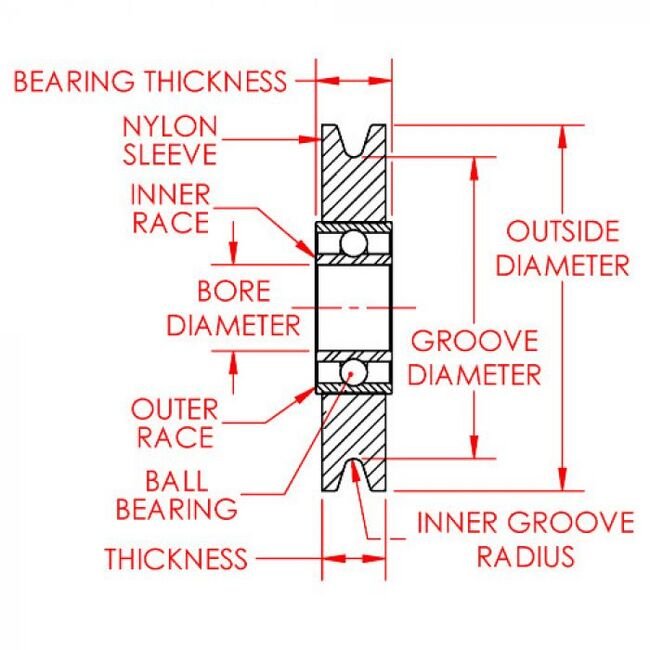

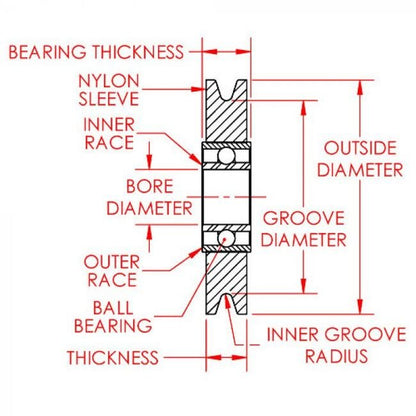

Technical Specs Bearing Thickness

0.156 in

Technical Specs Bore Condition

Steel Ball Bearing

Technical Specs Bore Diameter

0.125 in

Technical Specs Brands

Carl Stahl Sava Industries, Inc.

Technical Specs Cable Material

Nylon

Technical Specs Cable Type

Standard

Technical Specs Inner Groove Radius

0.015 in

Technical Specs Load Rating

Technical Specs Maximum Mating Cable Diameter

0.094 in

Technical Specs Outer Groove Diameter

0.5 in

Technical Specs Outside Diameter

0.625 in

Technical Specs Part

UP2050

Technical Specs Thickness

0.125 in
