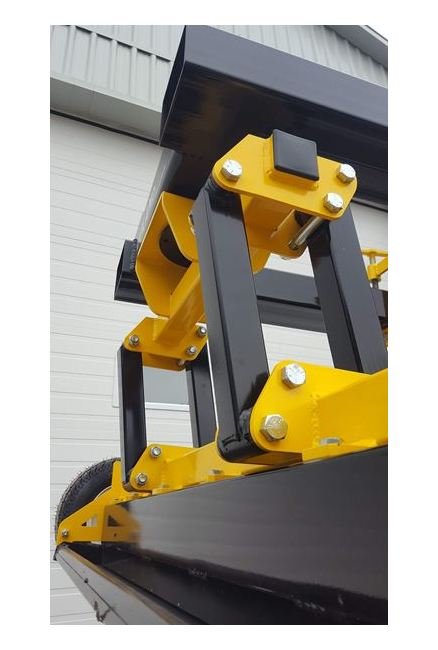

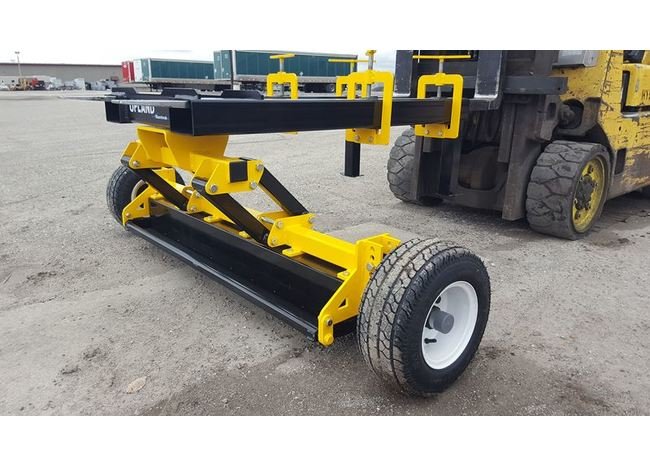

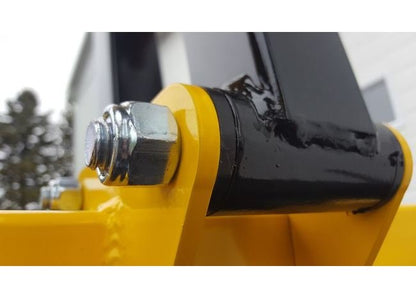

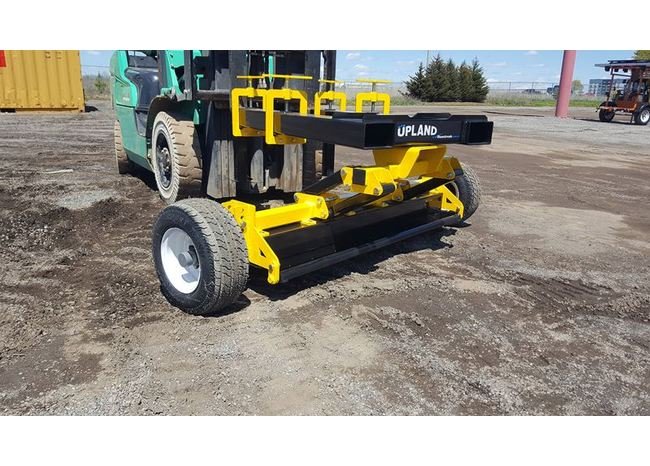

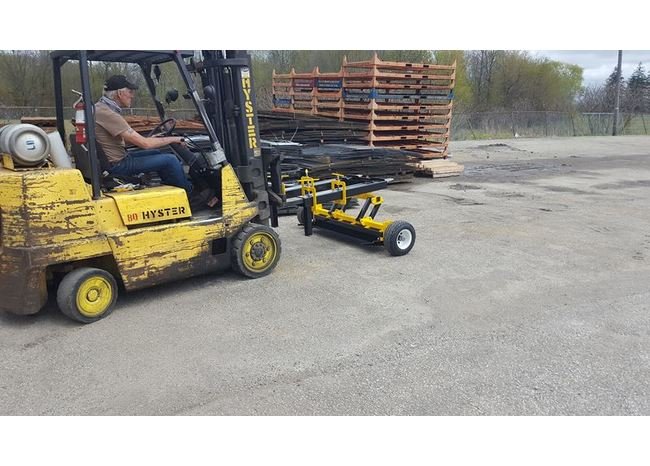

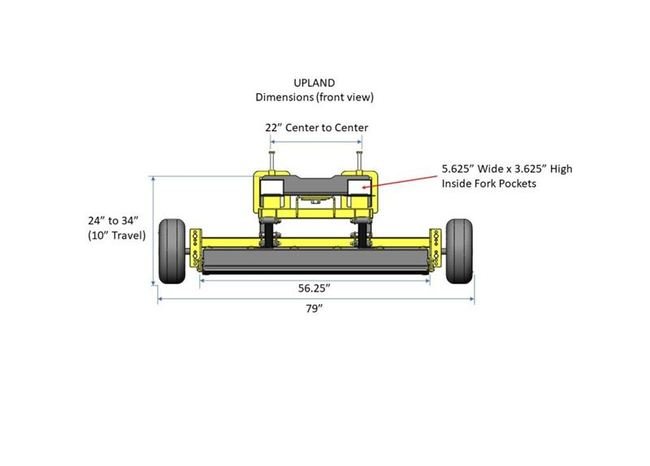

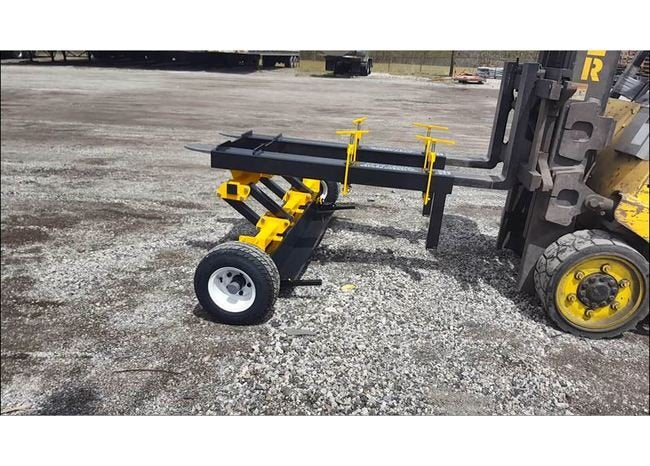

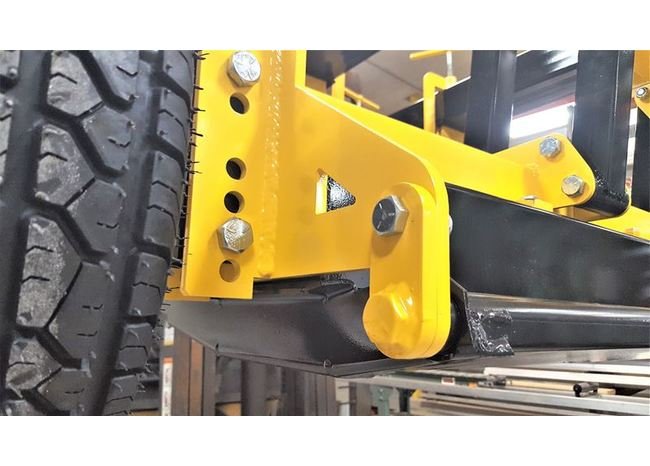

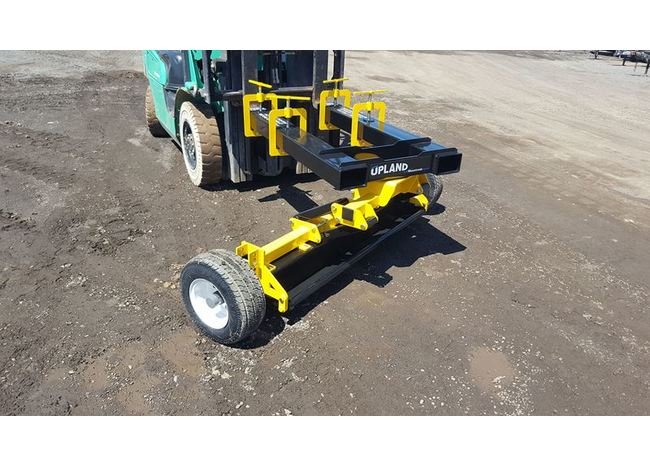

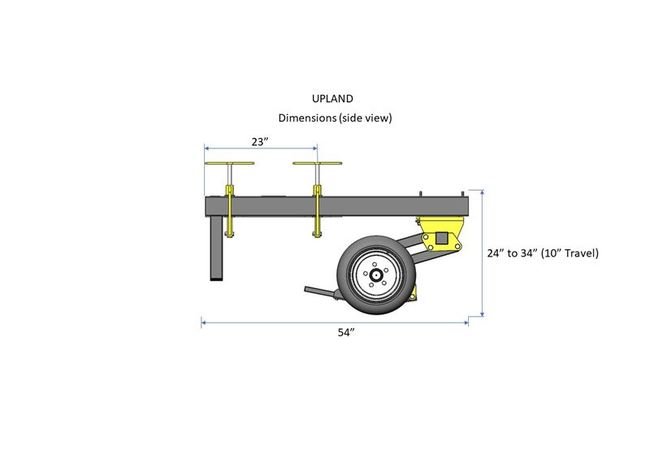

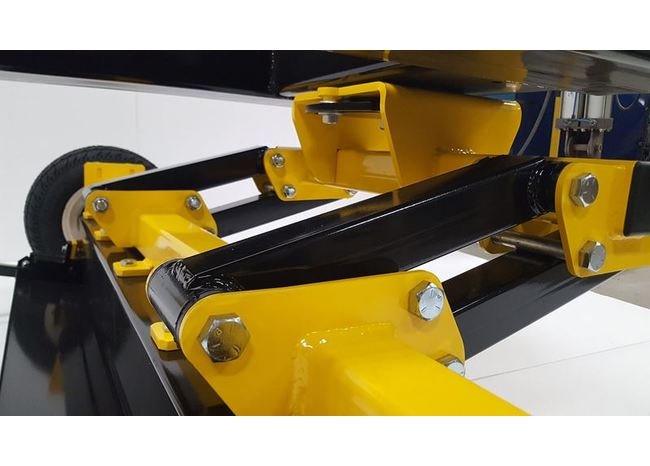

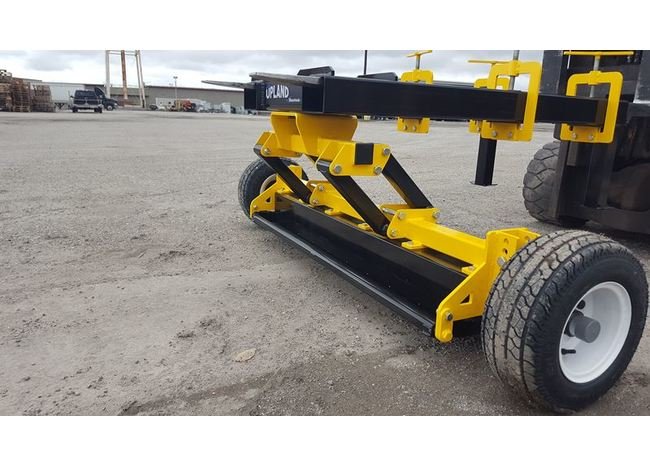

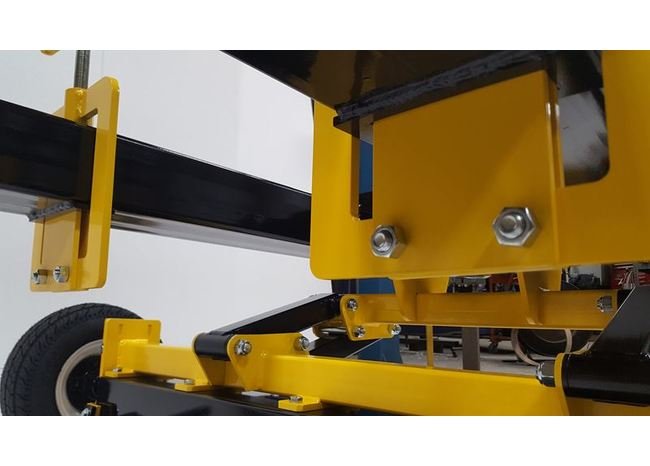

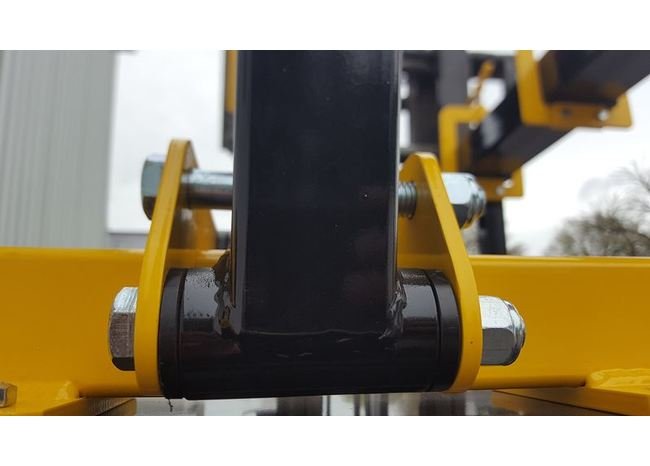

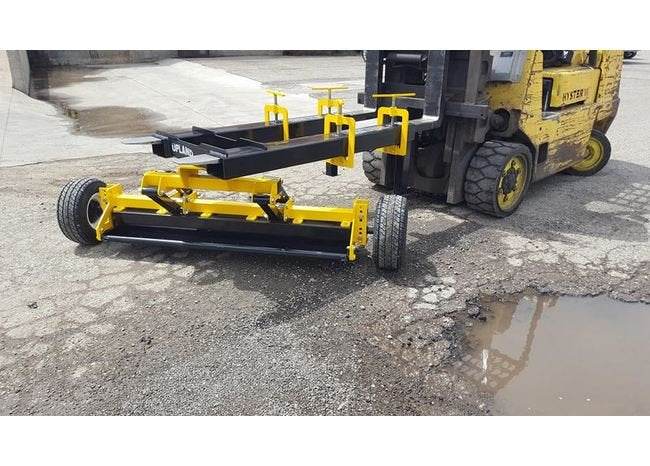

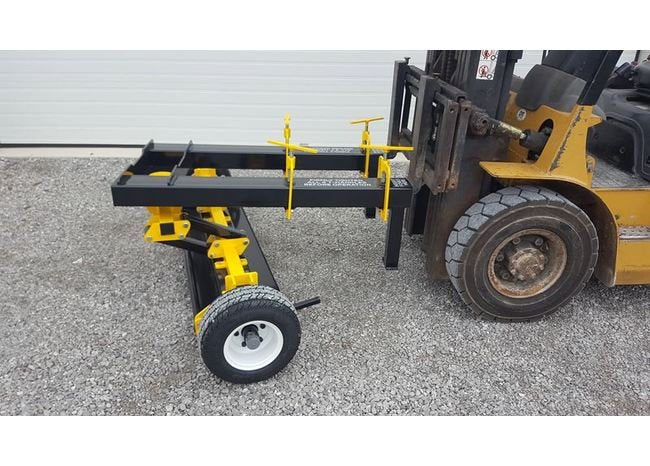

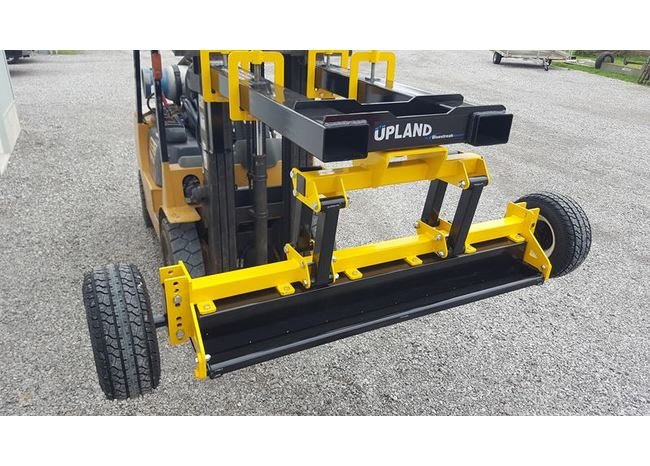

Easy Riding Fork Mounted Pickup PowerSemi Suspended Ground Tracking Technology Handles all Yard ConditionsThe Upland™ forklift magnet is a Semi-Suspended fork mounted sweeper that maintains perfect ground clearance over any terrain your forklift can manage.The ground tracking system features 10" of total travel on 16.5" flat proof, bearing protected wheels. The adjustable sweeping height and 4 link free floating suspension will maintain contact smoothly by travelling vertically and swiveling on heavy duty UHMW bushings affixed at each pivot point. Forklift operators can simply set the height and position of the forks to have the suspension in the middle of its travel and drive without worrying about fork adjustments or terrain.
Product Specifications
Additional Features

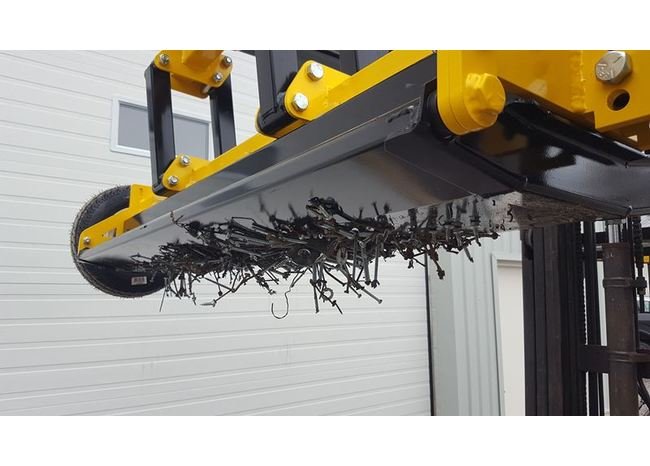

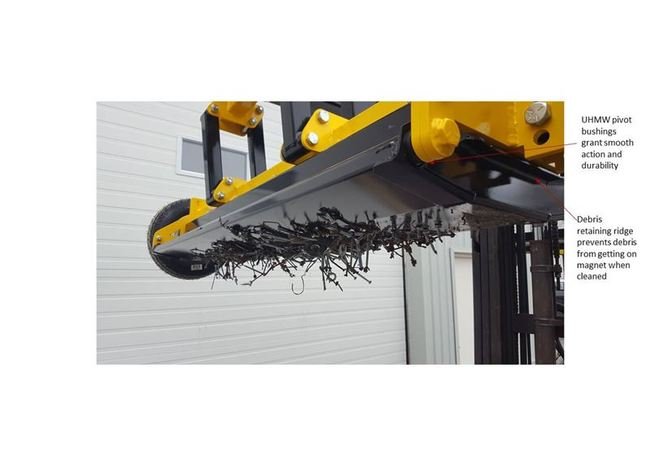

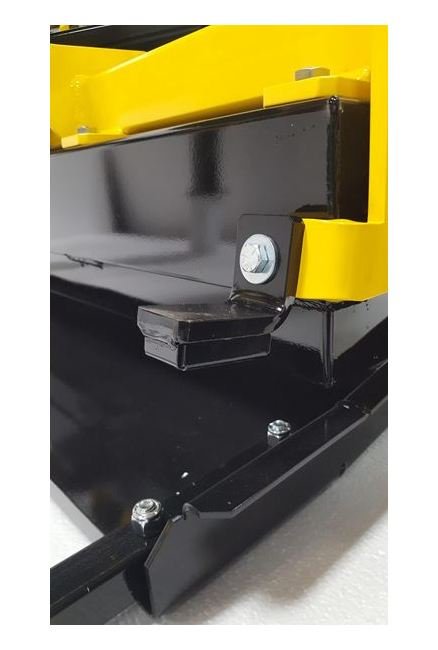

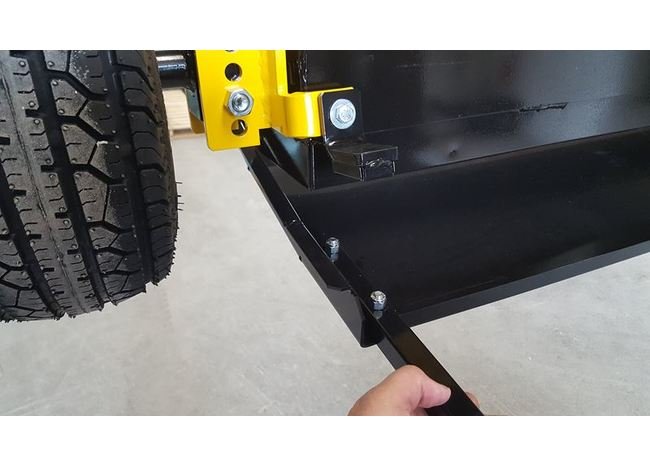

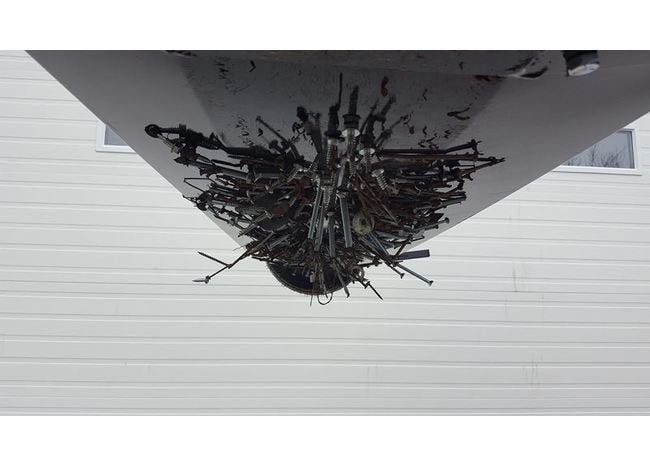

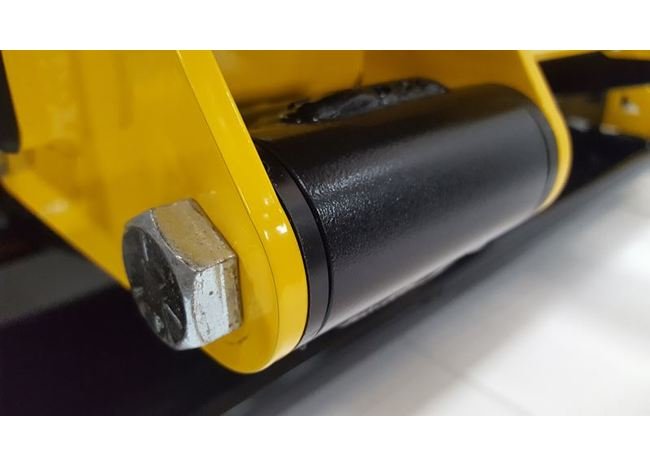

Rigid Debris Pan will not flex from side to side during clean off when you only use one of the Release handles, both sides of the Debris Pan release at the same timeUpward clamping fork Pockets for the safest, most secure connection to the forkliftDurable powder coat finish on steel frame10.75 inch maximum pickup height (using a 2-1/2 inch nail in a bench test)Ultra-High-Molecular-Weight Polyethylene (UHMW) bushings on all pivot pointsQuick Assembly
Additional Information

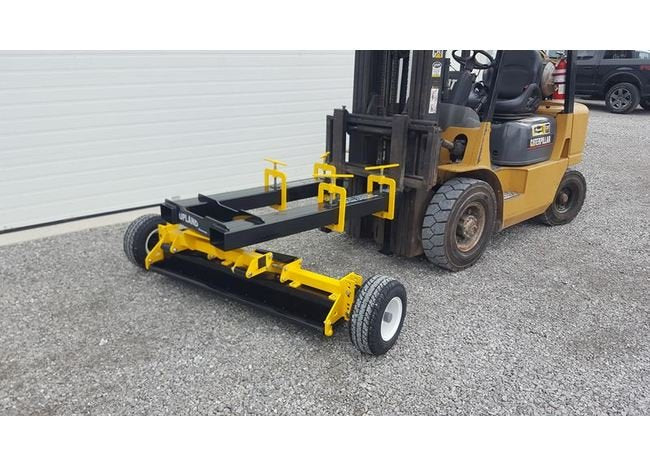

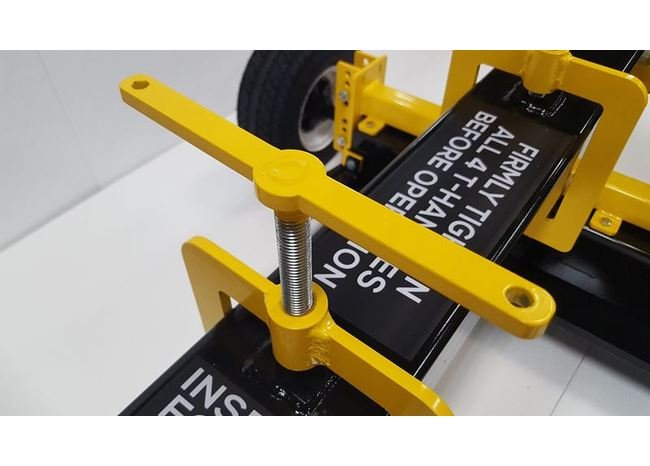

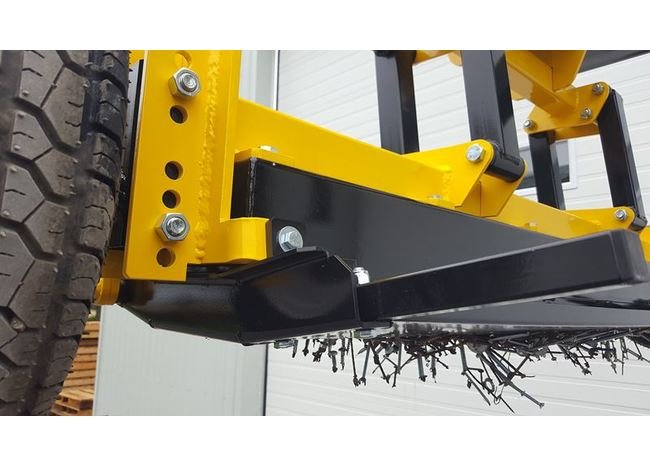

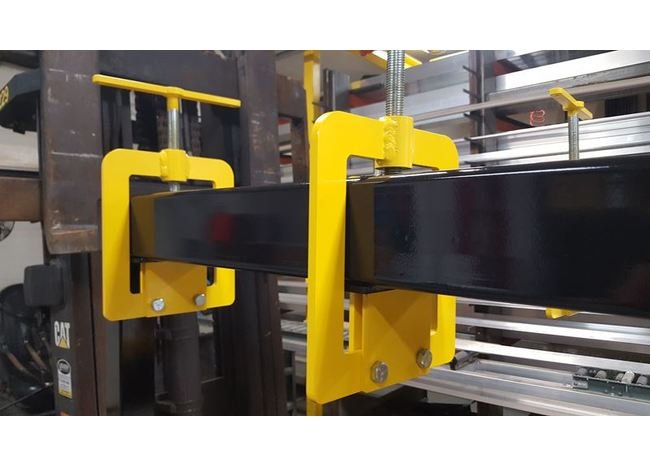

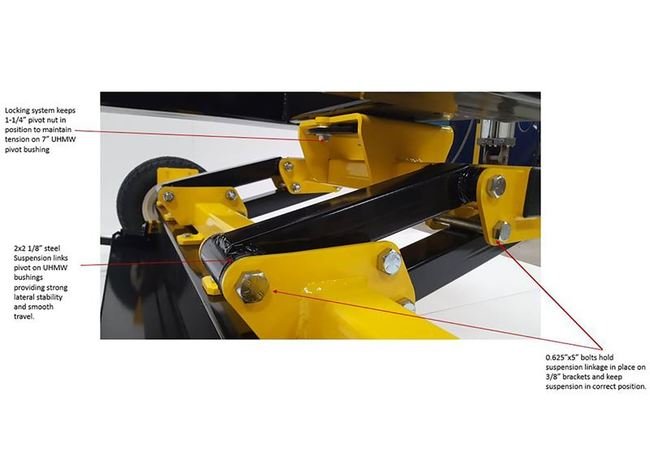

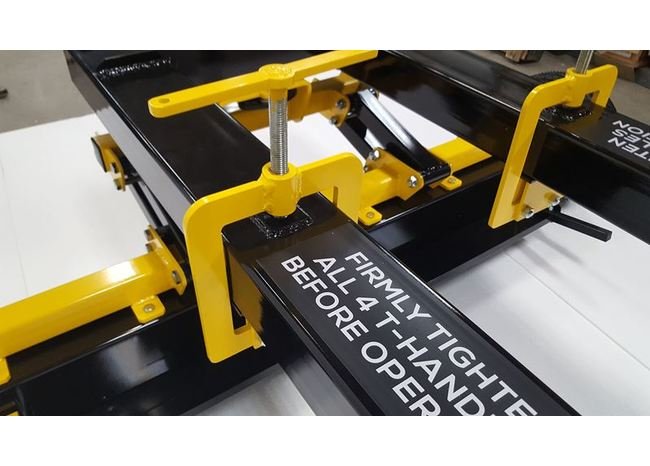

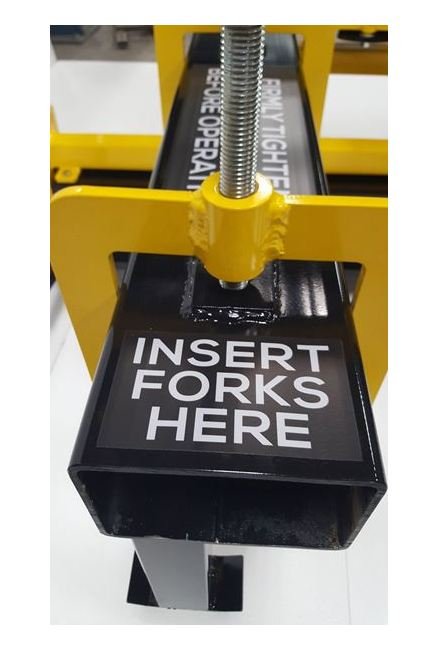

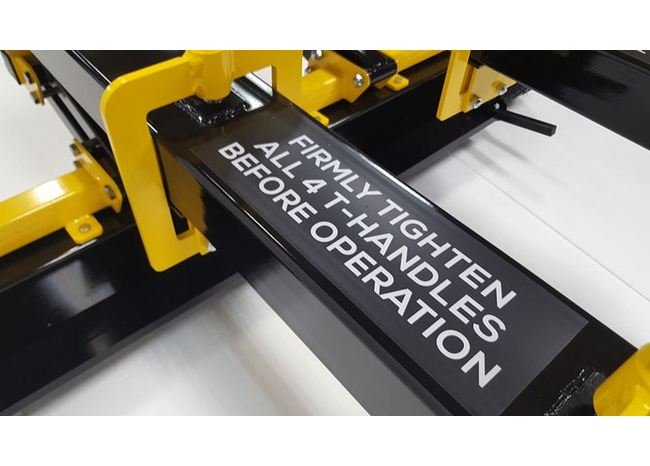

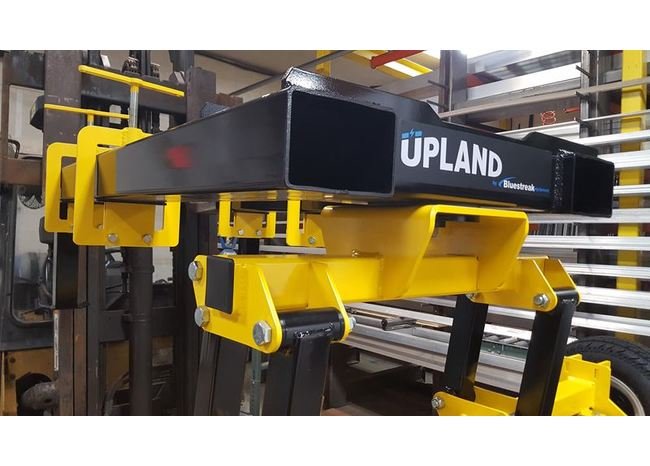

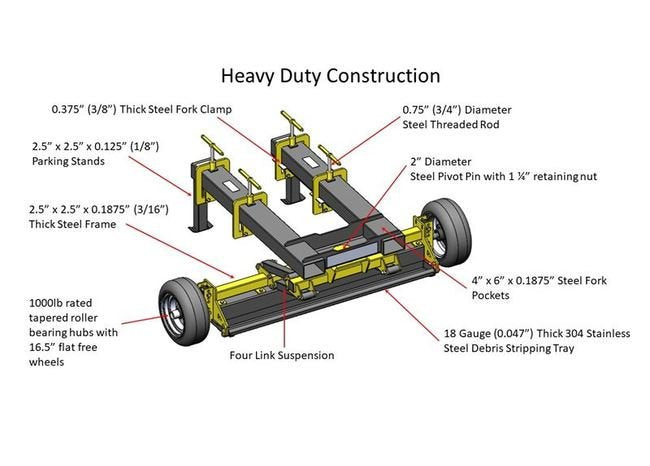

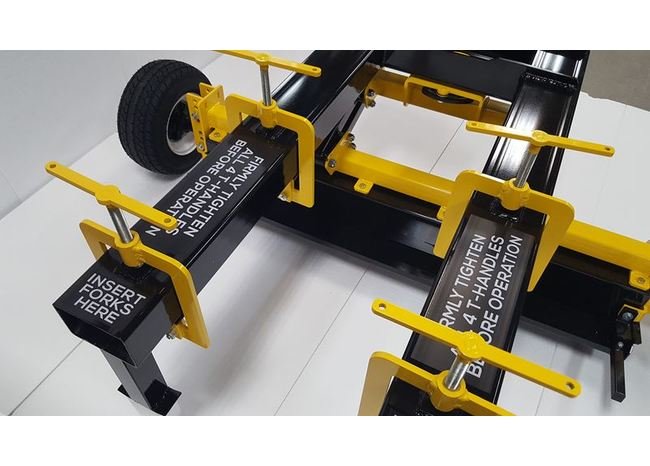

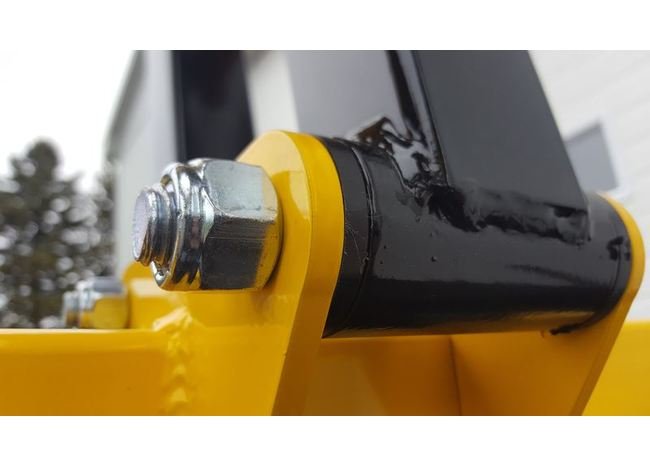

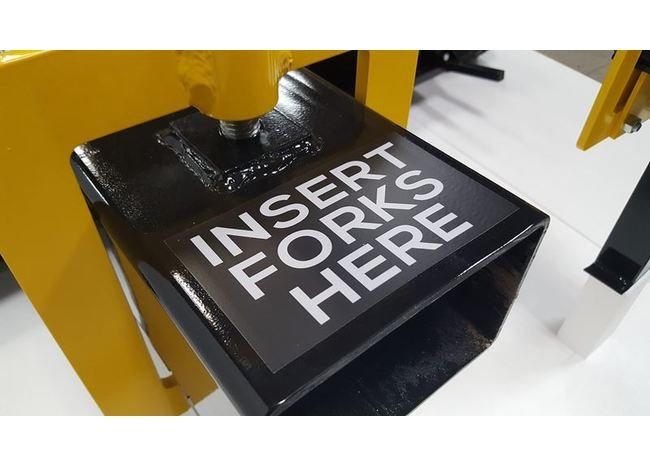

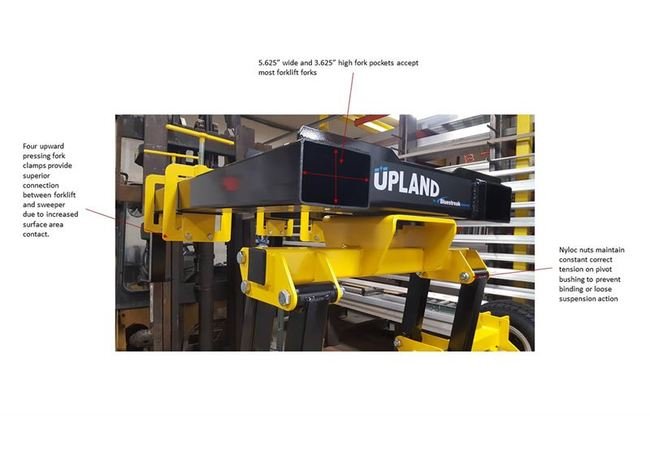

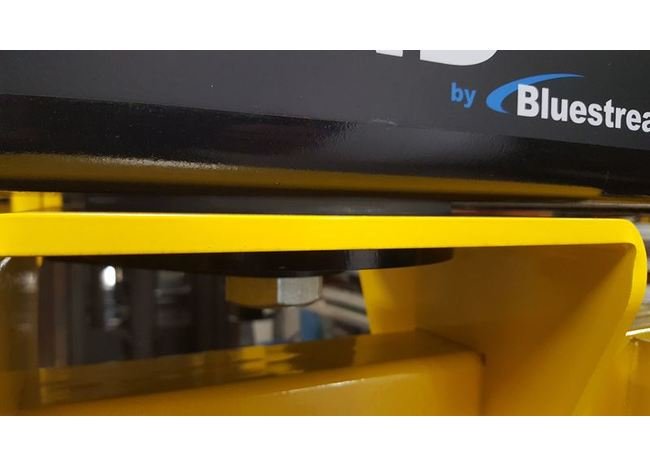

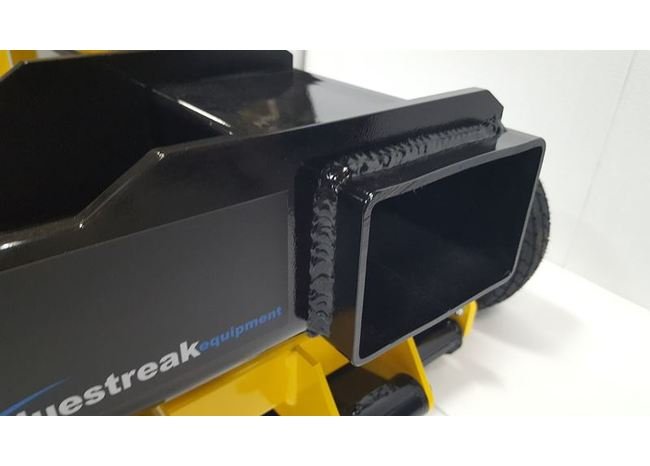

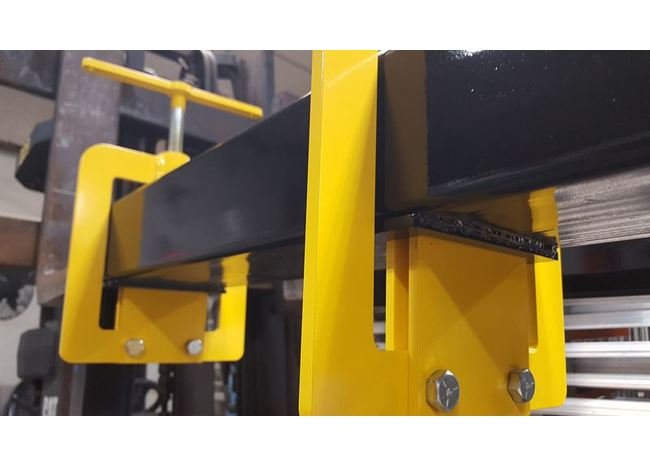

In extreme conditions the magnet is also protected by beveled leading and trailing edges that prevent the unit from hanging up on obstacles and deflect the magnet away from potential hazards while moving.The Upland™ is made of durable powder coated steel and stainless steel with a machined 1-1/4" pivot nut with a locking device to connect the fork pockets to the rolling assembly.To keep the Upland™ in place on your forks, our proprietary upward clamping fork pockets are utilized. These clamps have a much larger contact area when compared to a single threaded rod fork clamp and grant more stability and control to the operator by pressing the fork into the top of the fork pocket. Because much more of your fork is in contact with the inside of the fork pockets there is less opportunity for slippage or bent hardware when compared to single rod clamps.
Shipping Dimensions Shipping Height
25 in
Shipping Dimensions Shipping Length
81 in
Shipping Dimensions Shipping Width
34 in
Specifications Applications
Manufacturing FacilitiesTrucking TerminalsShipping TerminalsPrecast Concrete Sites
Specifications Cleaning Method

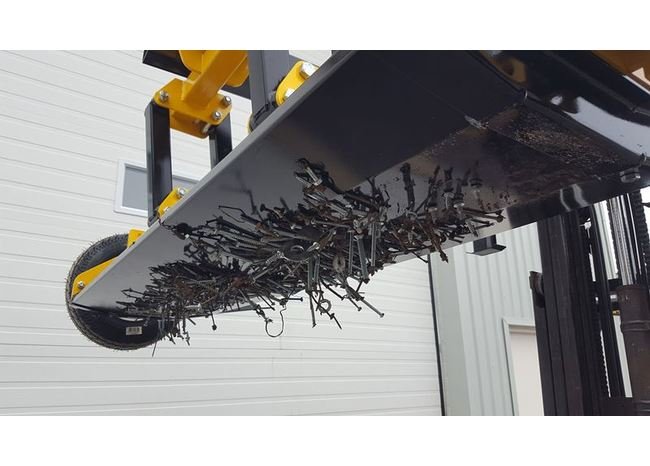

Flip Down Stainless Steel Debris Pan
Specifications Maximum Lifting Height
10.75 in
Specifications Sweeper Wheel Type

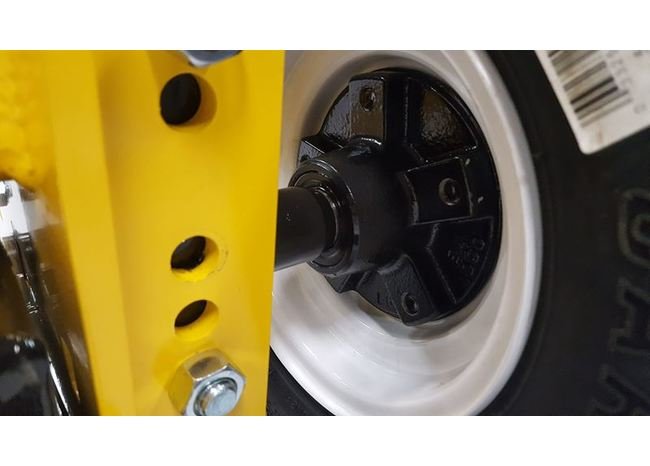

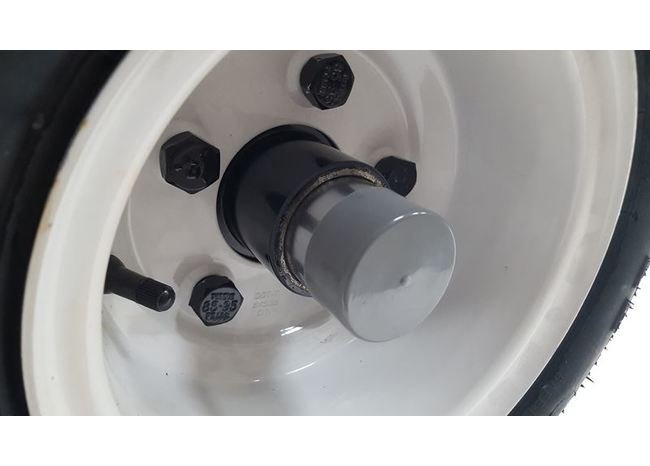

16.5 in. Flat Free Wheels with 5 Bolt Hubs

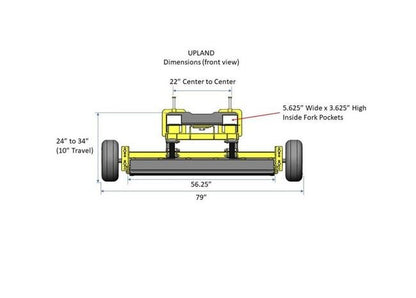

Specifications Sweeper Width
56 in
Specifications Sweeping Height Adjustability

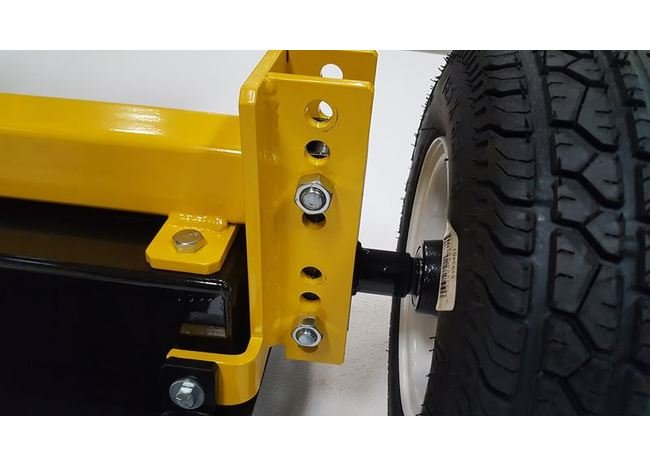

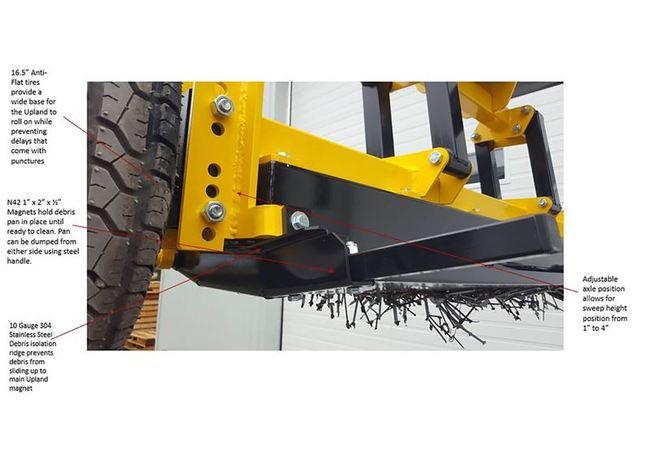

Yes, Adjustable Sweeping Height from 1 to 4 in. Via Axle Position Adjustment
Specifications Terrain Surface
All Terrain
Specifications Total Sweeper Weight
838 lb
Specifications Upland Series
Upland™
