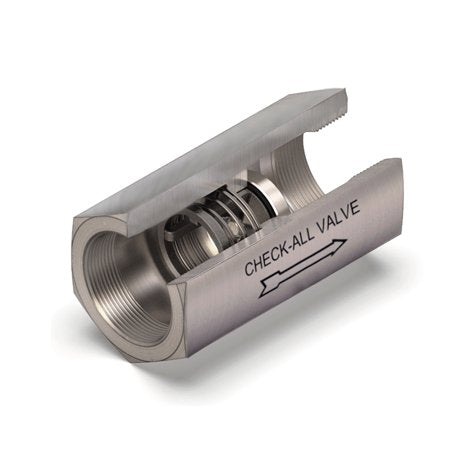

UR Style 2-1/2" Low-Pressure Check Valve, 1.50 PSI Cracking Pressure
UR Style 2-1/2" Low-Pressure Check Valve, 1.50 PSI Cracking Pressure
SKU:U3A-3c1e4b
Dependable UR Style 2-1/2" Low-Pressure Check Valve with 1.50 PSI Cracking Pressure, high-quality materials, and industry-standard compliance.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
UR Style 2-1/2" Low-Pressure Check Valve, 1.50 PSI Cracking Pressure
$129.99
Quantity: 1
Claim Your Seller Account
UR Style 2-1/2" Low-Pressure Check Valve, 1.50 PSI Cracking Pressure
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UR Style 2-1/2" Low-Pressure Check Valve combines precision engineering with robust materials like 316 Stainless Steel and advanced seat options. Designed for low maintenance and high performance, this valve ensures seamless functionality in various applications. Meeting stringent ISO, CE, and ASME standards, it guarantees reliability and durability in demanding environments.
Product Specifications
Note
Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Body Material Availability
316 Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Brass (BR) - Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard | Titanium (TI) - Contact the factory for these or other materials
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
2-1/2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
3000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
L
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
International Organization for Standardization (ISO) 7 Rp Threads = UR
