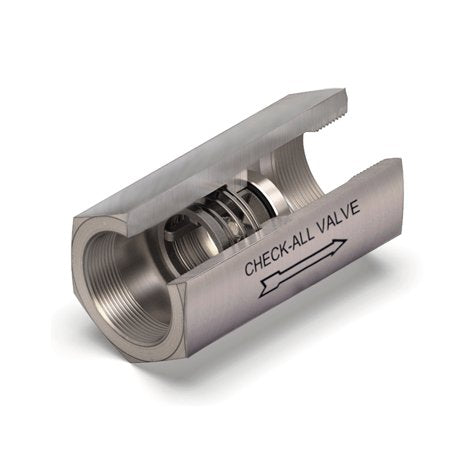

UR Style Low-Pressure Check Valve, 4in NPT, 0.500psi Cracking Pressure
UR Style Low-Pressure Check Valve, 4in NPT, 0.500psi Cracking Pressure
SKU:U3A-6ba3af
Enhance fluid control with the UR Style Low-Pressure Check Valve, 4in NPT, 0.500psi Cracking Pressure. CE & ISO 9001 certified.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
UR Style Low-Pressure Check Valve, 4in NPT, 0.500psi Cracking Pressure
$299.99
Quantity: 1
Claim Your Seller Account
UR Style Low-Pressure Check Valve, 4in NPT, 0.500psi Cracking Pressure
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control system with the UR Style Low-Pressure Check Valve. Crafted from top-grade 316 Stainless Steel, this valve offers a compact, maintenance-free design ensuring reliable performance. With ISO 7 Rp Threads and various body material options, it provides flexibility for different applications. Featuring a standard cracking pressure of 0.500 psi and a non-shock pressure rating of 1500 psig, this valve meets European Conformity (CE) and ISO 9001 certifications, making it a trusted choice for industrial settings.
Product Specifications
Note
Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Body Material Availability
316 Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Brass (BR) - Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard | Titanium (TI) - Contact the factory for these or other materials
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
4 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
1500 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
N
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
International Organization for Standardization (ISO) 7 Rp Threads = UR
