Urethane Compression Spring DT-25-778134, 1-3/4 Inch
Urethane Compression Spring DT-25-778134, 1-3/4 Inch
SKU:URE-5764af
Highly durable and versatile Urethane Compression Spring for corrosion, vibration, and magnetism-sensitive applications. Offers exceptional load-bearing capacity, dielectric strength, and extended lifespan.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Urethane Compression Spring DT-25-778134, 1-3/4 Inch
$49.99
Quantity: 1
Claim Your Seller Account
Urethane Compression Spring DT-25-778134, 1-3/4 Inch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

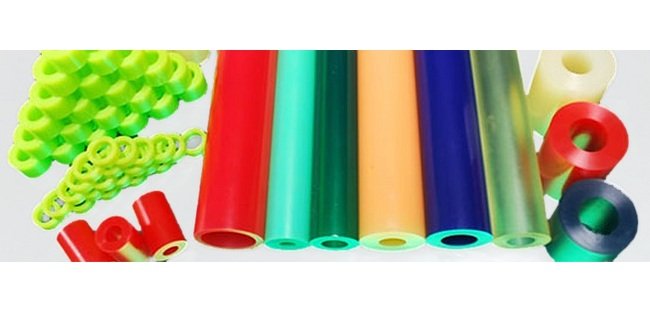

The DT-25-778134 Urethane Compression Spring is expertly designed for applications where corrosion, vibration, and magnetism make traditional steel springs unsuitable. With a duro hardness of 90A, this spring boasts high load-carrying capability, dielectric strength, and non-magnetic properties. It offers protection against marring, abrasion, oil, and solvents, ensuring a longer lifespan. Ideal for punching, stamping, and drawing dies, this spring provides effectiveness in temperatures ranging from -30°F to 180°F, along with excellent vibration damping and shock absorbance. Its unique design, including variations in shapes like tubes, cylinders, and pads, make it versatile across various engineering applications.
Product Specifications
Specifications Additional Information
Because of the exceptional load bearing capacity of urethane compression springs in the shape of tubes, cylinders, rectangular pads & sheets, urethane compression springs are used very successfully in various Engineering applications such as seismic bridge bearing blocks. Urethane compression springs and bearings also outperform rubber in terms of load bearing capacity, abrasion resistance and resistance to ground level ozone. One of the problems with rubber materials is their susceptibility to liquids and ground level ozone produced by the increasing number of automobiles or by electrical discharges. Over time rubber gradually cracks and deteriorates due to exposure to liquids and ozone. Polyurethane, however, is far more resistant to liquid and ozone attack. In fact, testing shows that polyurethane can be exposed to at least five times longer to the high levels of ozone specified for rubber in chapter 18 of the AREA manual (ASTM D1149) without deteriorative effects. P.P.CâS urethane spring material is a polyether-elastomer that reacts similarly to an incompressible fluid. The volume of material moved by compression is displaced laterally in the form of bulging sides. An approximation to the change in diameter of one of our standard cylindrical urethane springs can be made by incresing the diameter by the same amount of compression. Example: A 2.00-inch long spring is to be deflected 15% or .30 inches. The diameter will then also increase approximately by .30 inches. This materialâs lateral expansion must be considered for many applications, especially when they have to fit inside cavities. The recomended maximum free (unloaded) length is 2-1/2 timeâs the spring out side diameter, although springs may be stacked with guide rods and washer-shaped spacers, for taller applications.
Specifications Continuous Cycle Per Hour
12,000
Specifications Continuous Maximum Deflection
0 to 15 %
Specifications Conventional Heavy Duty Steel Die Spring
0 to 500 lb
Specifications Cycles Per Hour For Slow Speeds Or Short Runs
200
Specifications Cylinder Diameter
77/8 in
Specifications Cylinder Height
1-3/4 in
Specifications Hardness
90A duro
Specifications Intermittent Cycles Per Hour
700
Specifications Intermittent Maximum Deflection
0 to 25 %
Specifications Load At 14 Inch In Deflection
430 in
Specifications Load At 18 Inch In Deflection
250 in
Specifications Load At 38 Inch In Deflection
610 in
Specifications Maximum Deflection For Slow Speeds Or Short Runs
Less than 25%
Specifications Product Features
High load-carrying capability | High dielectric strength and non-magnetic | Protection against marring/galling | Longer life | Abrasion resistance | Oil and solvent resistance | Low noise | 100% load-bearing surface | Bondable to mating parts | Effectiveness between - 30°F and 180°F | Vibration damping and shock absorbance
Specifications Shape
Solid Rod
Specifications Urethane Bar Stock Weight
0 to 90,000 lb
Specifications Urethane Slab Stock Weight
Unlimited
Specifications Urethane Springs Weight
0 to 2,600 lb
