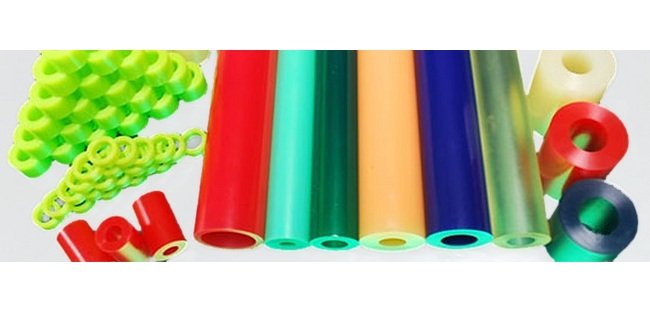

Urethane Compression Spring DT-35-24-22, 24 Inch
Urethane Compression Spring DT-35-24-22, 24 Inch
SKU:URE-ae5032
High-performance urethane compression spring with 80A duro hardness, 24-inch length, and 7,800 lb pressure per 1/8 inch deflection. Ideal for challenging environments.
Regular price
$75.00
Regular price
Sale price
$75.00
Unit price
per
Initiate Order
Urethane Compression Spring DT-35-24-22, 24 Inch
$75.00
Quantity: 1
Claim Your Seller Account
Urethane Compression Spring DT-35-24-22, 24 Inch
$75.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DT-35-24-22 Urethane Compression Spring is meticulously crafted for environments where corrosion, vibration, and magnetism pose challenges for traditional steel springs. With a hardness of 80A duro, height of 2 inches, width of 2 inches, and 24 inches in length, this spring offers exceptional performance. It boasts a pressure of 7,800 lb per 1/8 inch deflection, making it ideal for punching, stamping, and drawing dies. Moreover, its features include high load-carrying capability, non-magnetic properties, abrasion resistance, oil and solvent resistance, low noise operation, and effectiveness in temperatures ranging from -30°F to 180°F.
Product Specifications
Specifications Additional Information
Example: A 2.00-inch long spring is to be deflected 15% or .30 inches. The diameter will then also increase approximately by .30 inches. This materialâs lateral expansion must be considered for many applications, especially when they have to fit inside cavities.
Specifications Continuous Cycle Per Hour
12,000
Specifications Continuous Maximum Deflection
0 to 15 %
Specifications Conventional Heavy Duty Steel Die Spring
0 to 500 lb
Specifications Cycles Per Hour For Slow Speeds Or Short Runs
200
Specifications Hardness
80A duro
Specifications Height
2 in
Specifications Intermittent Cycles Per Hour
700
Specifications Intermittent Maximum Deflection
0 to 25 %
Specifications Length
24 in
Specifications Maximum Deflection For Slow Speeds Or Short Runs
Less than 25%
Specifications Pressure Per 18 Inch In Deflection
7,800 lb
Specifications Product Features
High load-carrying capability | High dielectric strength and non-magnetic | Protection against marring/galling | Longer life | Abrasion resistance | Oil and solvent resistance | Low noise | 100% load-bearing surface | Bondable to mating parts | Effectiveness between - 30°F and 180°F | Vibration damping and shock absorbance
Specifications Shape
Bar
Specifications Urethane Bar Stock Weight
0 to 90,000 lb
Specifications Urethane Slab Stock Weight
Unlimited
Specifications Urethane Springs Weight
0 to 2,600 lb
Specifications Width
2 in
