US Bolt Anchor Shackle - Grade 316 Stainless Steel

US Bolt Anchor Shackle - Grade 316 Stainless Steel

SKU:STA-da886d

Premium US Bolt Anchor Shackle - Grade 316 Stainless Steel. Made in USA. Ideal for saltwater use. ASME & Fed. Spec. compliant.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

US Bolt Anchor Shackle - Grade 316 Stainless Steel

US Bolt Anchor Shackle - Grade 316 Stainless Steel

$89.99

Quantity: 1

Claim Your Seller Account

US Bolt Anchor Shackle - Grade 316 Stainless Steel

US Bolt Anchor Shackle - Grade 316 Stainless Steel

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

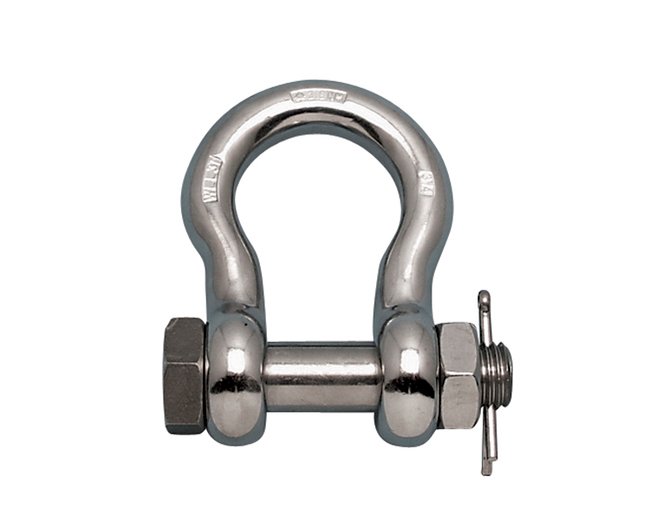

Crafted in the USA from high-quality 316-NM stainless steel, the US Bolt Anchor Shackle is designed with an oversize bolt for enhanced security. Ideal for saltwater environments, this stainless steel shackle with a working load limit of 14,000 lb is perfect for connecting anchors to chains or anchor swivels. Compliant with ASME B30.26-2010, Fed. Spec. RR-C-271, Type IVA standards, this Suncor exclusive product is drop forged for durability and reliability.

Product Specifications

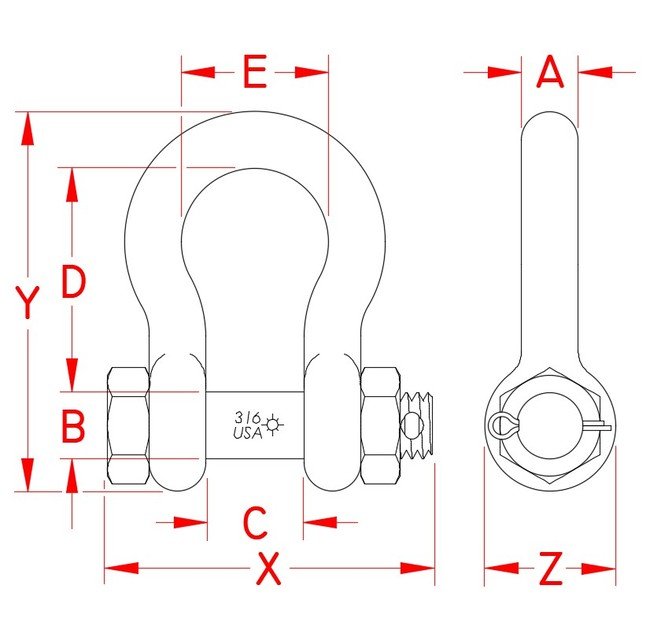

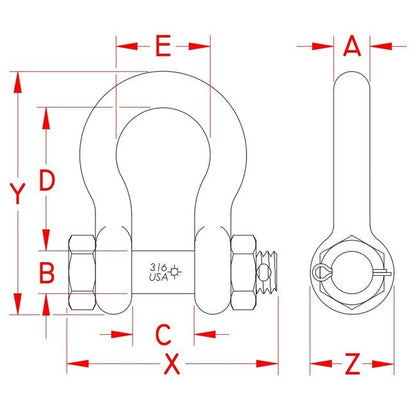

Specifications Dimension A
1-1/4 in
Specifications Dimension B
1.38 in
Specifications Dimension C
2.03 in
Specifications Dimension D
4.69 in
Specifications Dimension E
3.20 in
Specifications Dimension X
7.22 in
Specifications Dimension Y
8.15 in
Specifications Dimension Z
2.77 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
10.79 lb
Specifications Working Load Limit Wll
14,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
