US Bolt Chain Shackle - Grade 316 Stainless Steel, Suncor

US Bolt Chain Shackle - Grade 316 Stainless Steel, Suncor

SKU:STA-c4b004

Premium US-made 316 Stainless Steel Shackle with 4,000 lb WLL, ASME B30.26-2010 Certified

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

US Bolt Chain Shackle - Grade 316 Stainless Steel, Suncor

US Bolt Chain Shackle - Grade 316 Stainless Steel, Suncor

$49.99

Quantity: 1

Claim Your Seller Account

US Bolt Chain Shackle - Grade 316 Stainless Steel, Suncor

US Bolt Chain Shackle - Grade 316 Stainless Steel, Suncor

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

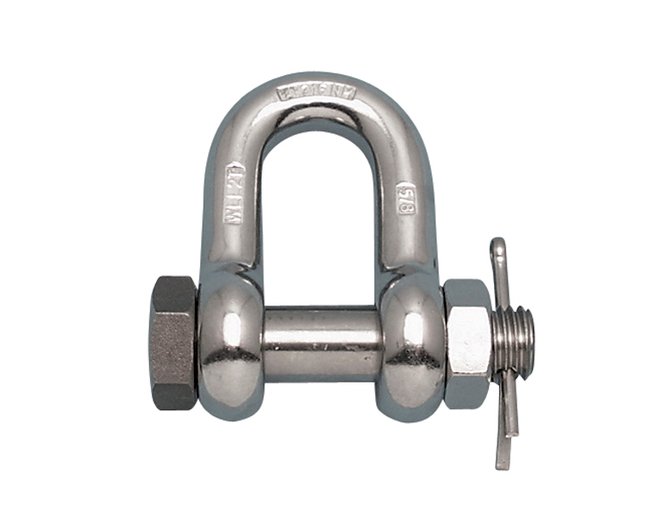

The US Bolt Chain Shackle, crafted in the USA from premium grade 316 stainless steel, is a reliable and durable component ideal for industrial and marine applications. Featuring an oversized bolt for secure fastening, this stainless steel shackle offers exceptional corrosion resistance. With a Working Load Limit (WLL) of 4,000 lb, it meets or exceeds ASME B30.26-2010, Class 3 specifications, Fed Spec RR-C-271, Type IVB standards. Marked to the nearest fractional ton, this Suncor exclusive product ensures quality and compliance for your safety-critical needs.

Product Specifications

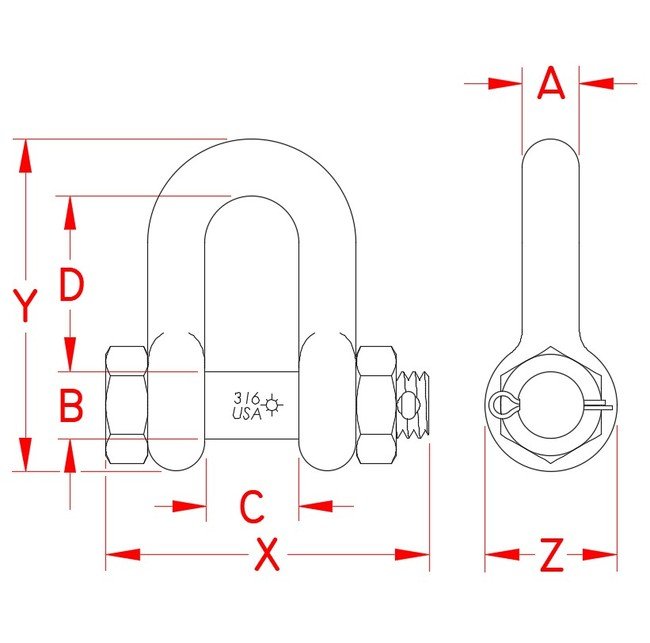

Specifications Dimension A
5/8 in
Specifications Dimension B
0.75 in
Specifications Dimension C
1.05 in
Specifications Dimension D
1.94 in
Specifications Dimension X
3.61 in
Specifications Dimension Y
3.64 in
Specifications Dimension Z
1.45 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVB
Specifications Suncor Exclusive
Yes
Specifications Weight
1.31 lb
Specifications Working Load Limit Wll
4,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
