US Military Spec Zinc Plated Thimbles - AN 100 (3/16")

Name: US Military Spec Zinc Plated Thimbles - AN 100 (3/16")
Brand: Lexco Cable Manufacturing
SKU: MIL-34bd58
Price: 24.99 USD
Availability: OutOfStock

SKU:MIL-34bd58

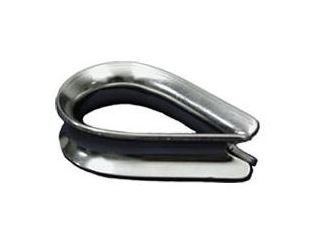

High-quality Made in USA zinc plated thimbles designed for 3/16" wire ropes, compliant with military standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

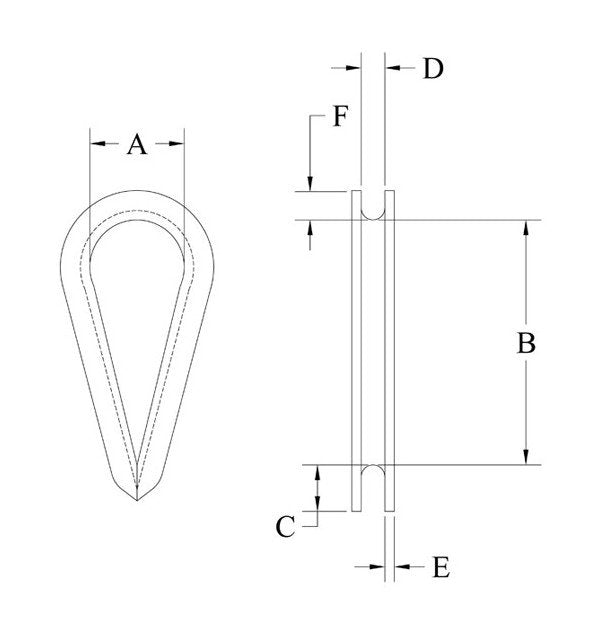

The Made in USA AN 100 Thimbles - ZP are specially designed to securely hold wire ropes with a diameter of 3/16 inches. Constructed from cold rolled zinc, these thimbles boast a precise build with dimensions A (0.500"), B (1"), C (5/16"), D (13/64"), E (0.032"), and F (11/64"). Compliant with NSN 4030-00-171-4912 & 6130-01-251-4541, these thimbles meet rigorous military specifications for reliable performance in demanding applications.

Product Specifications

Specifications A In

.500

Specifications B In

Specifications C

5/16

Specifications D

13/64

Specifications E

0.032

Specifications F

11/64

Specifications Nsn

4030-00-171-4912, 4030001714912 | 6130-01-251-4541 , 6130012514541

Specifications Type

Cold Rolled Zinc

Specifications Wire Rope Dia In

3/16

CAGE

0T9L4

NAICS

332510

PSC

4030
