USA Division Conductivity Sensor LFS1K0.1305.6W.B.010-6
USA Division Conductivity Sensor LFS1K0.1305.6W.B.010-6
SKU:CON-b6b265
Enhance conductivity measurements with precise LFS1K0.1305.6W.B.010-6 Sensor. Wide range, integrated temp. sensor, RoHS compliant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
USA Division Conductivity Sensor LFS1K0.1305.6W.B.010-6
$129.99
Quantity: 1
Claim Your Seller Account
USA Division Conductivity Sensor LFS1K0.1305.6W.B.010-6
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

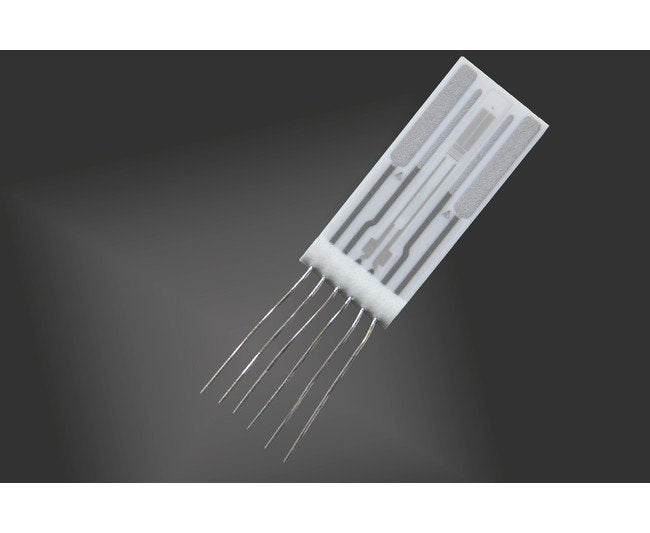

Enhance your conductivity measurement capabilities with the LFS1K0.1305.6W.B.010-6 Conductivity Sensor from Innovative Sensor Technology, USA Division. This sensor offers a wide conductivity range of 100 µS/cm to 200 mS/cm, precise cell constant of 0.86 cm-1, and integrated temperature sensor for accurate readings from -30 to +100 ºC. With a 4-electrode layout, platinum/nickel wires, and compact dimensions, this sensor ensures reliable performance in diverse applications while meeting RoHS compliance.
Product Specifications
Dimensions Length
12.9 mm
Dimensions Length Tolerance
5.5 mm
Dimensions Width
0.65 mm
Specifications Conductivity Range
100 µS/cm to 200 mS/cm
Specifications Layout
4 Electrodes and Integrated Temperature Sensor (Pt1000, Class F0.3)
Specifications Manufacturer Part Number
LFS1K0.1305.6W.B.010-6
Specifications Number Of Wires
6
Specifications Old Product Code
090.00072
Specifications Restriction Of Hazardous Substances Directive Roh
Yes
Specifications Temperature Range
-30 to +100 ºC
Specifications Cell Constant
0.86 cm-1
Specifications Wire Diameter
0.2 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Platinum (Pt)/Nickel (Ni)
