USA-Made Drop Forged Ring Bolts Shoulder - Screw Thread Eye Bolts
USA-Made Drop Forged Ring Bolts Shoulder - Screw Thread Eye Bolts
SKU:WIR-691209
Secure cable attachments with precision and strength using Chicago Hardware & Fixture Company's USA-Made Drop Forged Ring Bolts. Not for lifting.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
USA-Made Drop Forged Ring Bolts Shoulder - Screw Thread Eye Bolts
$349.99
Quantity: 1
Claim Your Seller Account
USA-Made Drop Forged Ring Bolts Shoulder - Screw Thread Eye Bolts
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

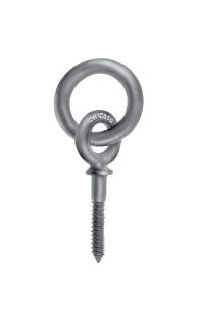

The USA-Made Drop Forged Ring Bolts Shoulder - Screw Thread Eye Bolts by Chicago Hardware & Fixture Company are ideal for secure cable attachments. Crafted from hot galvanized, drop forged steel, these bolts offer superior strength and durability. With precise specifications for diameter, shank length, eye dimensions, and shoulder thickness, they ensure reliable performance. Welded ring bolts provide versatile attachment options, although they are not intended for lifting applications.

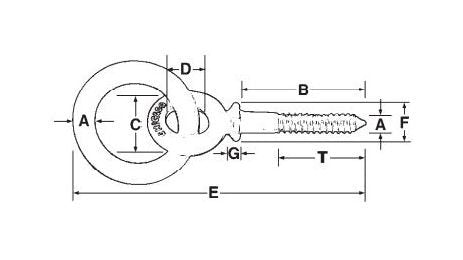

Product Specifications
Specifications Diameter A Shank Length B
3/4" x 4-1/2"
Specifications Id Eye Of Bolt D
1-1/2"
Specifications Id Eye Of Ring
3"
Specifications Od Eye Of Bolt C
2-3/4"
Specifications Outside Shoulder F
1-3/8"
Specifications Overall Length E
11"
Specifications Thickness At Shoulder G
1/4"
Specifications Thread Length T
3" "
Specifications Wt Per 100 Pcs Lbs
272
CAGE
0T9L4
NAICS
332722
PSC
5306
