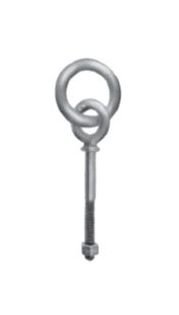

USA-Made Drop Forged Shoulder Ring Bolts - Machine Thread

Name: USA-Made Drop Forged Shoulder Ring Bolts - Machine Thread
Brand: Lexco Cable Manufacturing
SKU: WIR-c37ad5
Price: 299.99 USD
Availability: OutOfStock

SKU:WIR-c37ad5

Durable USA-made drop forged shoulder ring bolts for cable assemblies. Not for lifting applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Crafted in the USA by Chicago Hardware & Fixture Company, these drop forged shoulder ring bolts are designed for cable assemblies. With a hot galvanized finish and precise specifications, these bolts ensure durability and reliability. Note: Not for lifting applications.

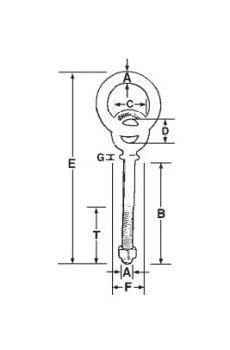

Product Specifications

Specifications Diameter A Shank Length B

5/8" x 4-1/2"

Specifications Id Eye Of Bolt D

1-1/4"

Specifications Id Eye Of Ring

2-3/4"

Specifications Od Eye Of Bolt C

2-5/16"

Specifications Outside Shoulder F

1-1/8"

Specifications Overall Length E

10"

Specifications Thickness At Shoulder G

13/64"

Specifications Thread Length T

2" "

Specifications Wll Lbs

1750

Specifications Wt Per 100 Pcs Lbs

187.5

CAGE

0T9L4

NAICS

332722

PSC

5306

USA-Made Drop Forged Shoulder Ring Bolts - Machine Thread
