USA-Made Lag Screw Thread Eye Bolt with Shoulder
USA-Made Lag Screw Thread Eye Bolt with Shoulder
SKU:WIR-1031fd
Premium USA-made eye bolt with lag screw thread and shoulder, ideal for secure cable attachment.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
USA-Made Lag Screw Thread Eye Bolt with Shoulder
$299.99
Quantity: 1
Claim Your Seller Account
USA-Made Lag Screw Thread Eye Bolt with Shoulder
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The USA-Made Lag Screw Thread Eye Bolt with Shoulder is a premium wire rope hardware designed by Chicago Hardware & Fixture Company. Featuring a durable construction with cone points, this eye bolt offers exceptional strength for securing cable assemblies. It can be easily attached via the open eye end or lag screw thread, providing versatility and reliability for various applications.

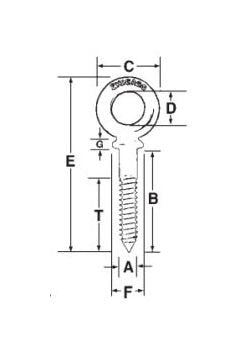

Product Specifications
Specifications Diameter A Shank Length B
1" x 6"
Specifications Inside Eye D
2"
Specifications Outside Eye C
3-3/4"
Specifications Outside Shoulder F
1-3/4"
Specifications Overall Length E
10-1/2"
Specifications Thickness At Shoulder G
5/16"
Specifications Thread Length T
3-1/2" "
Specifications Wt Per 100 Pcs Lbs
297
CAGE
0T9L4
NAICS
332722
PSC
5306
