USA-Made Stainless Steel Bolt Anchor Shackle

USA-Made Stainless Steel Bolt Anchor Shackle

SKU:STA-a268b9

Premium 316 stainless steel anchor shackle with oversized bolt for marine applications, 10,000 lb WLL, ASME & Fed Spec compliant.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

USA-Made Stainless Steel Bolt Anchor Shackle

USA-Made Stainless Steel Bolt Anchor Shackle

$39.99

Quantity: 1

Claim Your Seller Account

USA-Made Stainless Steel Bolt Anchor Shackle

USA-Made Stainless Steel Bolt Anchor Shackle

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

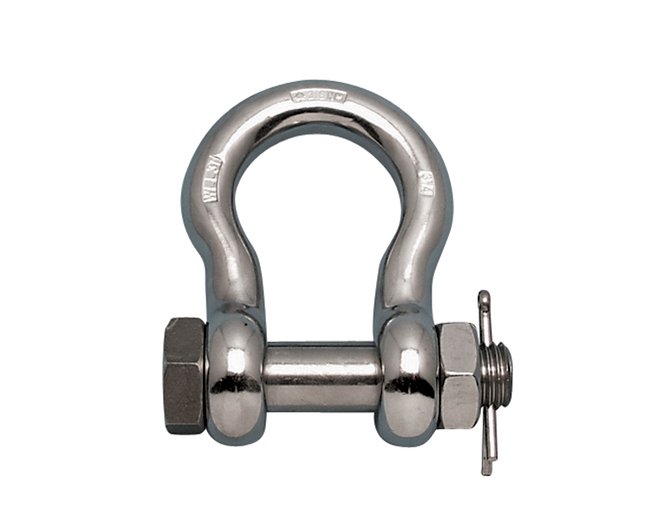

The USA-Made Stainless Steel Bolt Anchor Shackle is a premium-grade 316 stainless steel shackle designed for marine applications. Its oversized bolt ensures superior strength and durability, with a working load limit of 10,000 lb. This anchor shackle is perfect for connecting anchors to chains or swivels, meeting stringent ASME B30.26-2010, Fed Spec RR-C-271 Type IVA, and Class 3 standards. Crafted in the USA by Suncor with precision drop forging, this shackle guarantees reliability and safety in every use.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

Product Specifications

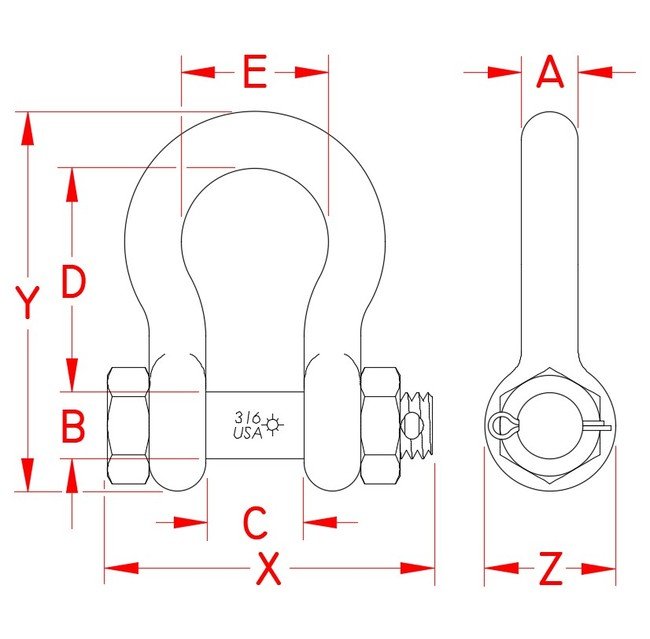

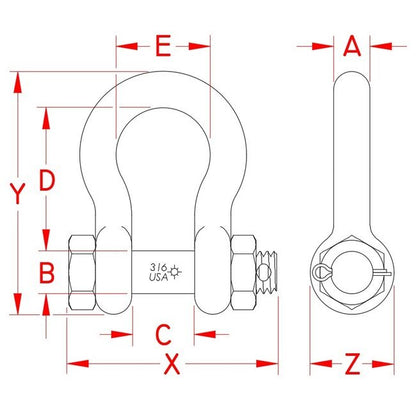

Specifications Dimension A
1 in
Specifications Dimension B
1.13 in
Specifications Dimension C
1.70 in
Specifications Dimension D
3.80 in
Specifications Dimension E
2.60 in
Specifications Dimension X
5.15 in
Specifications Dimension Y
6.46 in
Specifications Dimension Z
2.20 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
5.09 lb
Specifications Working Load Limit Wll
10,000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
