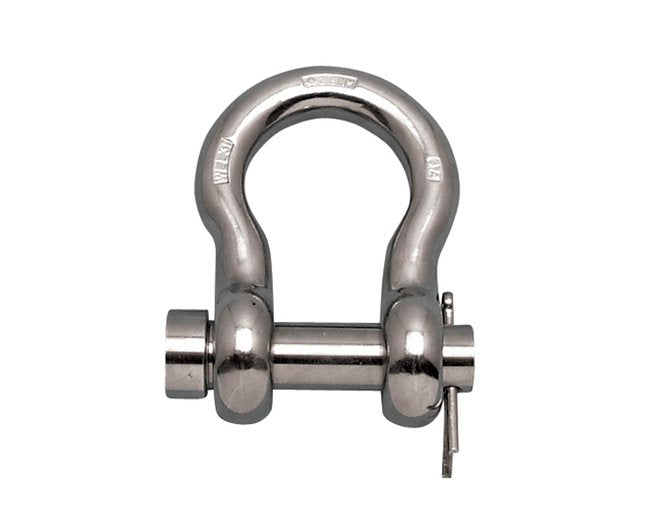

USA-Made Stainless Steel Round Pin Anchor Shackle

Name: USA-Made Stainless Steel Round Pin Anchor Shackle
Brand: Suncor Stainless, Inc.
SKU: STA-f6afa6
Price: 54.99 USD
Availability: OutOfStock

SKU:STA-f6afa6

Premium USA-Made Stainless Steel Round Pin Anchor Shackle for marine use, Grade 316, Fed Spec RR-C-271 Type IVA Class 1 compliant.

$54.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Crafted in the USA from premium grade 316 stainless steel, the USA-Made Stainless Steel Round Pin Anchor Shackle is a marine-grade powerhouse designed for saltwater applications. Featuring an oversized round pin, this shackle excels in connecting anchors to chains or swivels. Compliant with Fed Spec RR-C-271, Type IVA, Class 1 standards, except the material is upgraded to 316 stainless steel for enhanced durability and performance.

Product Specifications

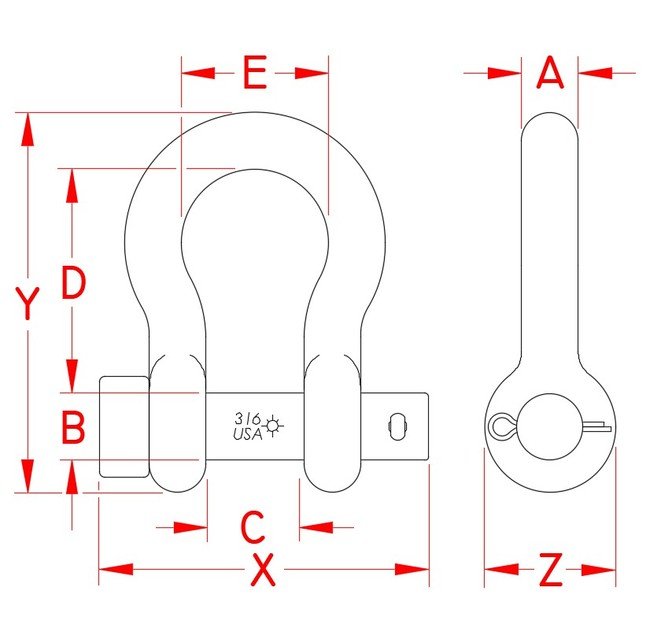

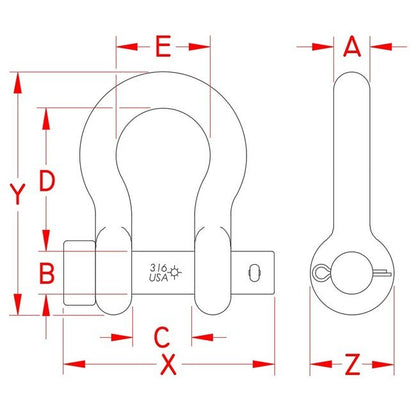

Specifications Dimension A

1 in

Specifications Dimension B

1.13 in

Specifications Dimension C

1.70 in

Specifications Dimension D

3.80 in

Specifications Dimension E

2.60 in

Specifications Dimension X

5.00 in

Specifications Dimension Y

6.45 in

Specifications Dimension Z

2.22 in

Specifications Fabrication Type

Drop Forged

Specifications Load Rated

Yes

Specifications Made In

Made in USA

Specifications Material

316-NM Stainless Steel

Specifications Specification

Class 1 | Fed. Spec. RR-C-271 | Type IVA

Specifications Suncor Exclusive

Yes

Specifications Weight

4.83 lb

Specifications Working Load Limit Wll

10,000 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
