USA Made Steel Axial Thrust Assembly

Name: USA Made Steel Axial Thrust Assembly
Brand: Stafford Manufacturing Corp.
SKU: ROU-89f4bf
Price: 149.99 USD
Availability: OutOfStock

SKU:ROU-89f4bf

Efficiently move shaft-mounted components with precision and protection using this USA-made steel assembly.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

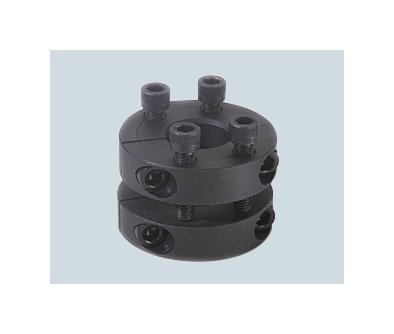

The USA Made Steel Axial Thrust Assembly provides safe and efficient movement of parts along shafts without damage. With a high axial force suitable for handling shrink fit and frozen parts, this assembly can be mounted anywhere on a shaft. Designed to protect face and bearing seals, it comprises two steel two-piece collars allowing for precise positioning and up to 8,000 lbs. thrust. The stationary collar's four alloy thrust screws enable controlled movement without harming seals. Ideal for industrial applications requiring precision and reliability.

Product Specifications

Dimensional Attributes Fixed Collar Id

2-1/2 in

Dimensional Attributes Fixed Collar Width

0.750 in

Dimensional Attributes Maximum Axial Displacement

0.750 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

3/8-24 x 1

Dimensional Attributes Slide Collar Id

2-1/2 in

Dimensional Attributes Slide Collar Width

0.750 in

Specifications Alloy

1215

Specifications Approximate Weight

3.39 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

ATA0208

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Upc Code

662786027970
