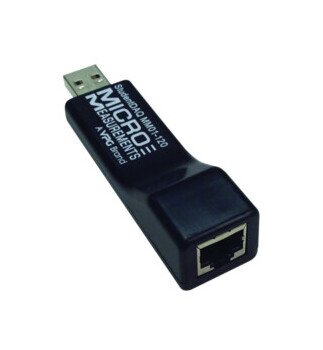

USB-Powered 12-Channel Data Acquisition Device for Strain Gage Measurements
USB-Powered 12-Channel Data Acquisition Device for Strain Gage Measurements
SKU:STR-df81df
Highly accurate USB-powered 12-Channel Data Acquisition Device for strain gage measurements. Ideal for educational setups and gage installation verification.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
USB-Powered 12-Channel Data Acquisition Device for Strain Gage Measurements
$249.99
Quantity: 1
Claim Your Seller Account
USB-Powered 12-Channel Data Acquisition Device for Strain Gage Measurements
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The USB-Powered 12-Channel Data Acquisition Device is a versatile solution offering hardware and software support for quarter, half, and full bridge configurations. With a measurement range of ±16,000 µm/m and 24-bit Delta-Sigma A/D converter, this device ensures accurate data acquisition at 80 samples per second. Ideal for educational settings or gage installation validation, it features user-friendly software, time-stamped data recording, and USB power. Experience seamless integration with Windows-based systems through LabVIEW drivers. Ensure precise strain measurement with this reliable and easy-to-use instrument.
Product Specifications
Mechanical Depth
3.5 in
Mechanical Height
1 in
Mechanical Weight
0.05 lb (0.023 kg)
Mechanical Width
1 in
Ordering Information Ordering Information
MM01-120 StudentDAQ - 1-Ch 120 Ω MM01-350 StudentDAQ - 1-Ch 350 Ω MM01-1K StudentDAQ - 1-Ch 1000 Ω
Specifications Accuracy
1% of reading @GF=2.0
Specifications Ad Converter
24 bit Delta-Sigma
Specifications Bridge Completion
120 Ohm, 350 Ohm, 1000 Ohm, internal HB 1K Ohm
Specifications Bridge Types
¼ , ½ , Full Bridge
Specifications Connection
RJ45
Specifications Data Rate
80 S/s
Specifications Drivers
Labview, .NET interface
Specifications Excitation
2.5 Volts (nominal, fixed)
Specifications Input Type
Strain Gage
Specifications Max Channels Multiple Units
12
Specifications Max Input
±8mV/V @ GF = 2.0
Specifications Max Storage
PC dependent
Specifications Measurement Range
±16,000 µm/m @ GF=2.00
Specifications Power
USB only
Specifications Resolution
1µm/m @ GF=2.00
Specifications Software
Windows based
