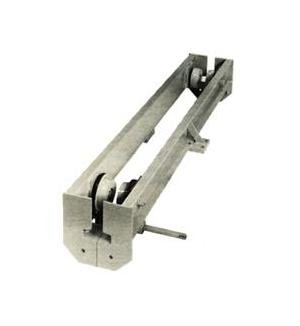

USC 3-Ton Under Running End Truck Kit
USC 3-Ton Under Running End Truck Kit
SKU:REL-37dbfc
High-capacity USC 3-Ton Under Running End Truck Kit for safe and efficient overhead crane operation on varied runway beams.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
USC 3-Ton Under Running End Truck Kit
$1,899.99
Quantity: 1
Claim Your Seller Account
USC 3-Ton Under Running End Truck Kit
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The USC 3-Ton Under Running End Truck Kit is a reliable and durable solution for overhead crane systems. With a wheel load capacity of 6500 lbs. per pair, this kit is designed to operate smoothly on runway beams of varying sizes. Its sturdy construction, with dimensions meeting industry standards, ensures optimal performance and safety. The gear ratio of 1.82:1 and a net weight of 850 lbs. per pair make it a versatile and efficient choice for overhead crane components.

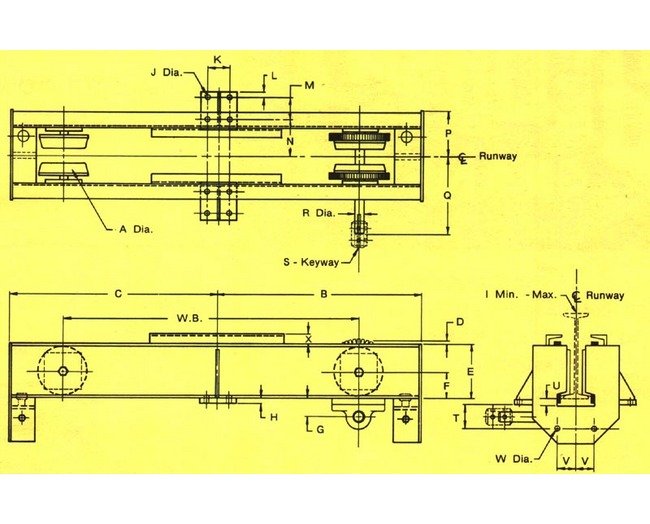

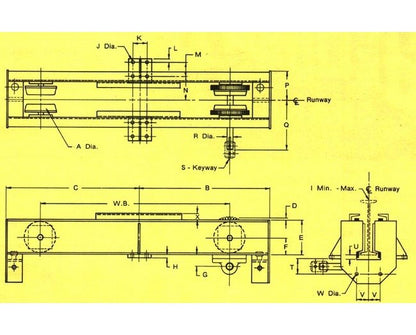

Product Specifications
Specifications Capacity
3 Tons
Specifications Dimension A
6 1/2 inches
Specifications Dimension B
4'-5"
Specifications Dimension C
4'-3"
Specifications Dimension D
7/8 inches
Specifications Dimension E
7 inches
Specifications Dimension F
3 13/16 inches
Specifications Dimension G
2 3/16 inches
Specifications Dimension H
3/4 inches
Specifications Dimension I Max
S15 x 42.9
Specifications Dimension I Min
S10 x 25.4
Specifications Dimension J
13/16 inches
Specifications Dimension K
3 1/2 inches
Specifications Dimension L
7/8 inches
Specifications Dimension M
3 inches
Specifications Dimension N
5 9/16 inches
Specifications Dimension P
7 inches
Specifications Dimension Q
11 9/16 inches
Specifications Dimension R
1 1/4 inches
Specifications Dimension S
1/4 inches
Specifications Dimension T
2 1/2 inches
Specifications Dimension U
13/16 inches
Specifications Dimension V
3 inches
Specifications Dimension W
11/16 inches
Specifications Dimension X
1 inches
Specifications Gear Ratio
1.82:1
Specifications Model
USC
Specifications Net Weight Per Pair
850 lbs.
Specifications Wheel Base
7'-6"
Specifications Wheel Load Per Pair
6500 lbs.
