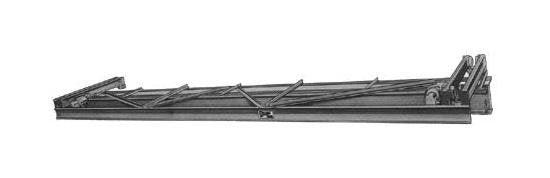

USD Double Motorized Underhung Single Girder Crane
USD Double Motorized Underhung Single Girder Crane
SKU:REL-eb86d9
Heavy-duty 7.5-ton motorized underhung crane for extreme conditions, indoor/outdoor use. Compliant with industry standards.
Regular price
$17,999.00
Regular price
Sale price
$17,999.00
Unit price
per
Initiate Order
USD Double Motorized Underhung Single Girder Crane
$17,999.00
Quantity: 1
Claim Your Seller Account
USD Double Motorized Underhung Single Girder Crane
$17,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The USD Double Motorized Underhung Single Girder Crane is designed for heavy-duty lifting in extreme conditions. With a capacity of 7 1/2 tons and a durable W30 x 108 girder size, this crane offers exceptional stability and performance. It features a top-running single girder configuration, making it ideal for indoor and outdoor use. The crane is motor-driven, ensuring efficient and reliable operations. With safety as a top priority, it complies with industry-specific certifications and meets Federal/DoD procurement standards.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
7 1/2 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
11441 lbs.

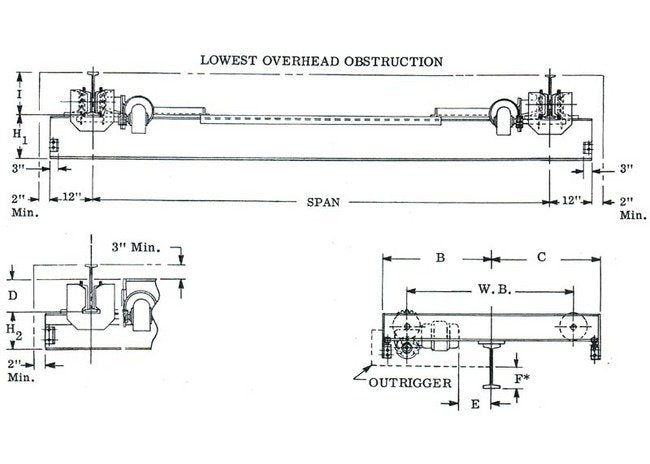

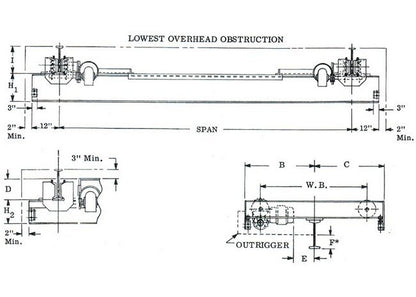

Specifications Dimension B
5'-1"
Specifications Dimension C
5'-0"
Specifications Dimension D
15 inches
Specifications Dimension E
32 inches
Specifications Dimension F
14 inches
Specifications Dimension H1
31 inches
Specifications Dimension H2
15 inches
Specifications Electric
&nbps;
Specifications Girder Size
W30 x 108
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S20 x 65.4
Specifications Min Runway Rail
S12 x 31.8
Specifications Model
Model USD Motorized Cranes
Specifications Outrigger
Structural
Specifications Span
55'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
8'-6"
Specifications Wheel Diameter
8 1/2 inches
Specifications Wheel Load Per Pair
11360 lbs.
