USS Flat Washer 9/16 in Zinc/Clear - Carbon Steel
USS Flat Washer 9/16 in Zinc/Clear - Carbon Steel
SKU:STA-da7f24
High-quality USS Flat Washer 9/16 in, made of carbon steel with Zinc/Clear finish. Wide Series for strong structural support.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
USS Flat Washer 9/16 in Zinc/Clear - Carbon Steel
$14.99
Quantity: 1
Claim Your Seller Account
USS Flat Washer 9/16 in Zinc/Clear - Carbon Steel
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The USS Flat Washer in 9/16 inch size is a reliable hardware essential made of durable carbon steel with a corrosion-resistant zinc/clear finish. This washer belongs to the Wide Series, ensuring robust structural support for various applications. Its design provides secure fastening and even distribution of load, enhancing stability and longevity. Ideal for industrial, construction, and maintenance projects, this flat washer meets stringent procurement standards and guarantees top-notch performance.
Product Specifications

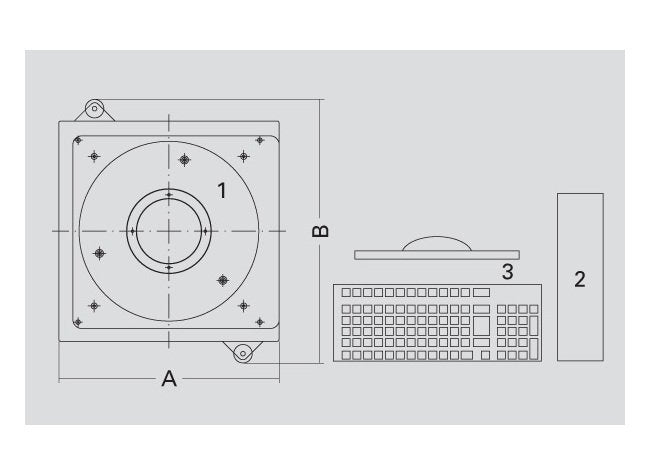

Machine Depth B
390 mm
Machine Height C
120 mm
Machine Note For Dimensions
Data non-binding, depending on respective equipment 44
Machine Width A
480 mm
Power Supply Frequency
50 Hz
Power Supply Voltage
230 V
Range Of Application Range Of Application

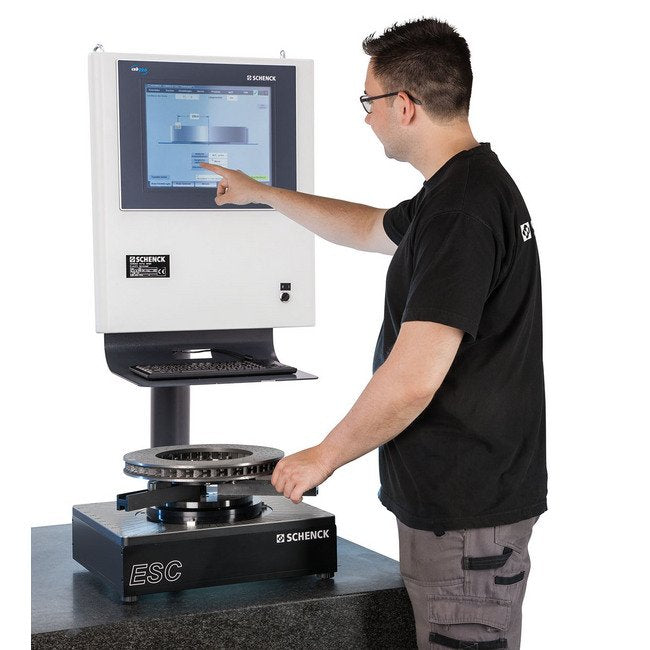

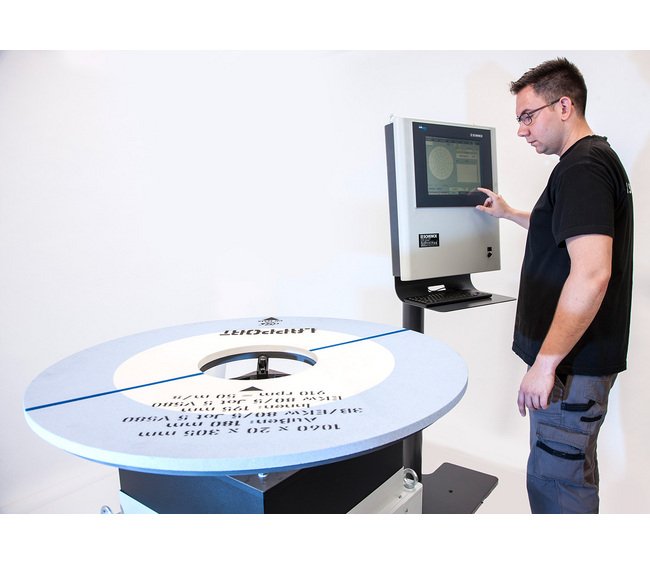

Measurement of the static unbalance of disc-shaped rotors such as unfired grinding discs, propellers and ventilators.Unbalance correction by addition of material directly on the machine or by removal of material on separate correction units.Can be used for mere unbalance measurement, for tasks in production involving unbalance correction, for incoming goods inspection, for re-balancing and for weight measurement.
Special Features Special Features

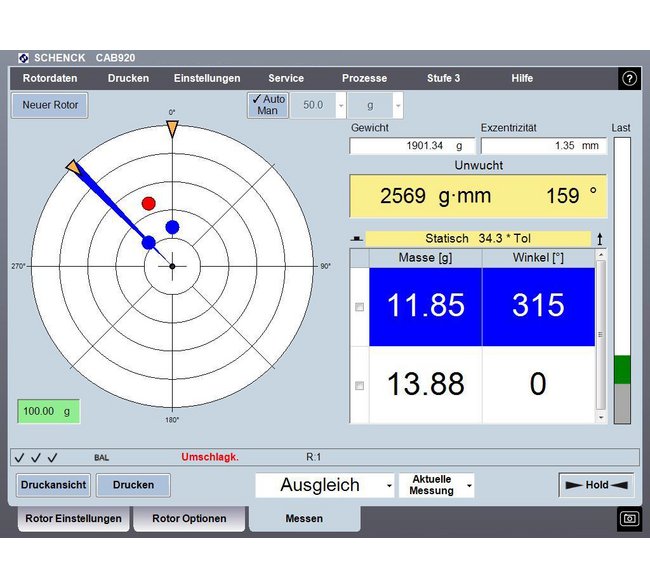

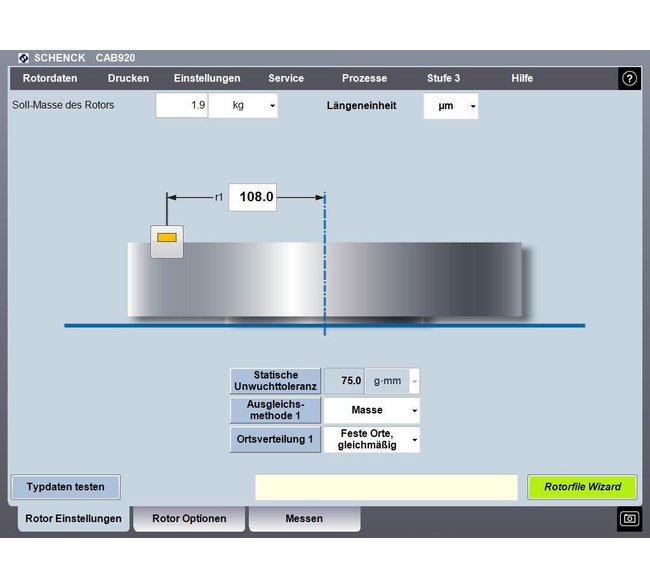

Direct display on achieving of tolerance limit, operator prompting during calibration process, memory for calibration data for easy change-over from one work-piece type to the next at the push of a button.Compact design ensures optimum ease of deployment.Program for compensating of adapter errors, test program displaying operator or system errors, process control through host computer is possible, integral product data base.
Technical Data Available Versions
Enclosure-Mounted Version for Large Rotors | Table-Top Version
Technical Data Basic Machine Order Number
R0050200.02
Technical Data Brands
SCHENCK
Technical Data Diameter
250 mm
Technical Data Load Carrying Capability Of The Balancing Unit
1 to 3 kg
Technical Data Maximum Measurable Unbalance
10 kg/mm
Technical Data Measuring Time
2 to 5 seconds
Technical Data Measuring Uncertainty
3 g/mm
Technical Data Rotor Applications
Chopper rotors | Clutch components, flywheels | Grinding discs | Ventilators, fans | Wheel hubs, brake drums, brake discs
