USS Flat Washer - Carbon Steel Plain Finish 2 3/4 in
USS Flat Washer - Carbon Steel Plain Finish 2 3/4 in
SKU:STA-c57458
High-quality USS Flat Washer in Carbon Steel with Plain finish. A Wide Series, 2 3/4 in size, 110.00 lb weight. Ideal for industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
USS Flat Washer - Carbon Steel Plain Finish 2 3/4 in
$29.99
Quantity: 1
Claim Your Seller Account
USS Flat Washer - Carbon Steel Plain Finish 2 3/4 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The USS Flat Washer in Carbon Steel with a Plain finish is designed to provide maximum surface contact area for distributing load stress. Measuring 2 3/4 inches in size, this washer ensures a secure fit and enhanced stability. Crafted to meet A Wide Series specifications, this washer is durable and reliable for various applications. It weighs 110.00 lb per hundred pieces, making it suitable for heavy-duty industrial use.
Product Specifications

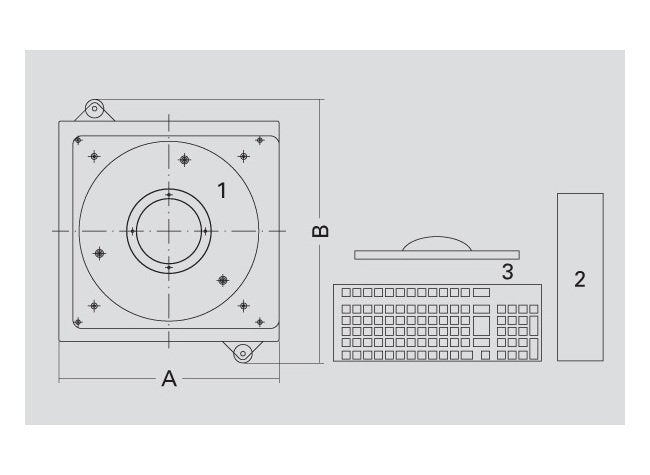

Machine Depth B
390 mm
Machine Height C
120 mm
Machine Note For Dimensions
Data non-binding, depending on respective equipment 44
Machine Width A
480 mm
Power Supply Frequency
50 Hz
Power Supply Voltage
230 V
Range Of Application Range Of Application

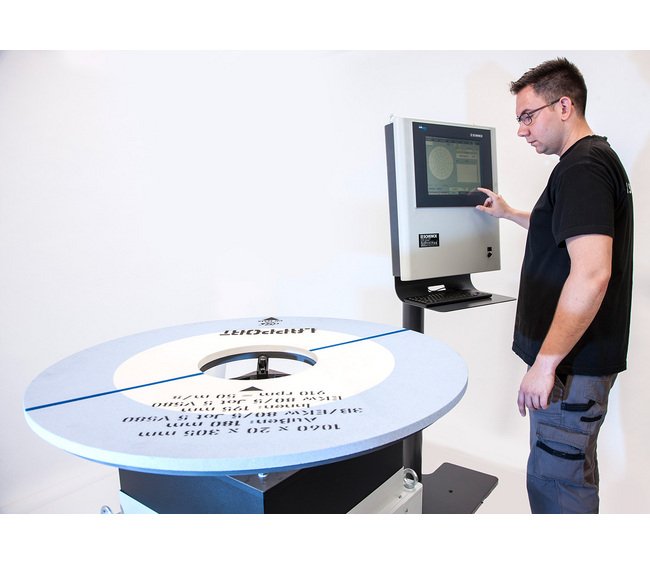

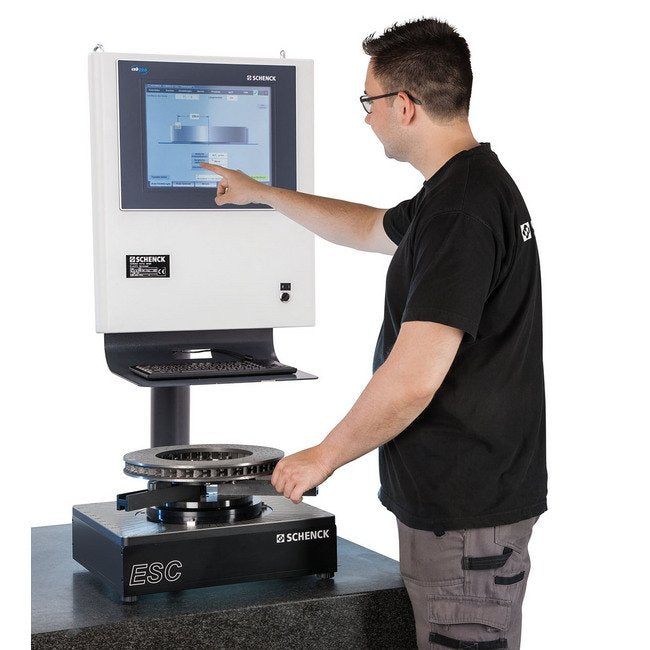

Measurement of the static unbalance of disc-shaped rotors such as unfired grinding discs, propellers and ventilators.Unbalance correction by addition of material directly on the machine or by removal of material on separate correction units.Can be used for mere unbalance measurement, for tasks in production involving unbalance correction, for incoming goods inspection, for re-balancing and for weight measurement.
Special Features Special Features
Direct display on achieving of tolerance limit, operator prompting during calibration process, memory for calibration data for easy change-over from one work-piece type to the next at the push of a button.Compact design ensures optimum ease of deployment.Program for compensating of adapter errors, test program displaying operator or system errors, process control through host computer is possible, integral product data base.
Technical Data Available Versions
Enclosure-Mounted Version for Large Rotors | Table-Top Version
Technical Data Basic Machine Order Number
R0050400.02
Technical Data Brands
SCHENCK
Technical Data Diameter
1000 mm
Technical Data Load Carrying Capability Of The Balancing Unit
6 to 20 kg
Technical Data Maximum Measurable Unbalance
25 kg/mm
Technical Data Measuring Time
2 to 5 seconds
Technical Data Measuring Uncertainty
15 g/mm
Technical Data Rotor Applications
Clutch components, flywheels | Complete wheels | Grinding discs | Propellers | Vehicle tires | Ventilators, fans | Wheel hubs, brake drums, brake discs
