The USS Flat Washer from our Wide Series is a heavy-duty essential for fastening applications. Measuring 3 inches in size, this plain flat washer is constructed from durable carbon steel, ensuring reliability and strength. With a weight of 130.00 lb per 100 pieces, it provides stability and support in demanding environments. Trust this USS Flat Washer for secure and lasting connections in various structural projects.
Product Specifications
Design Design

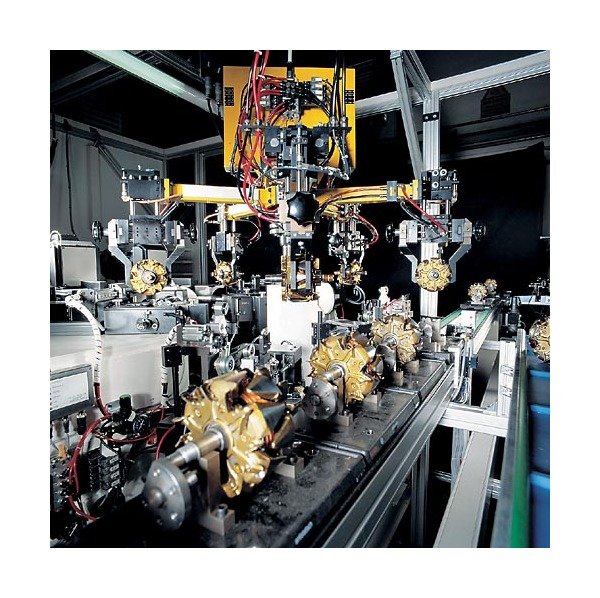

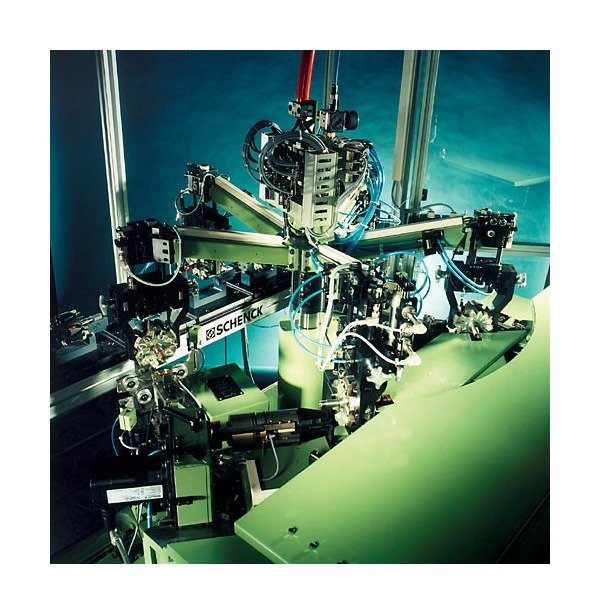

Five-station machine with fully automatic sequence of operations.Station-to-station transfer and integration with peripheral equipment through integrated rotary transfer.Work-pieces can be delivered to the machine by chain or pallet transport conveyor.

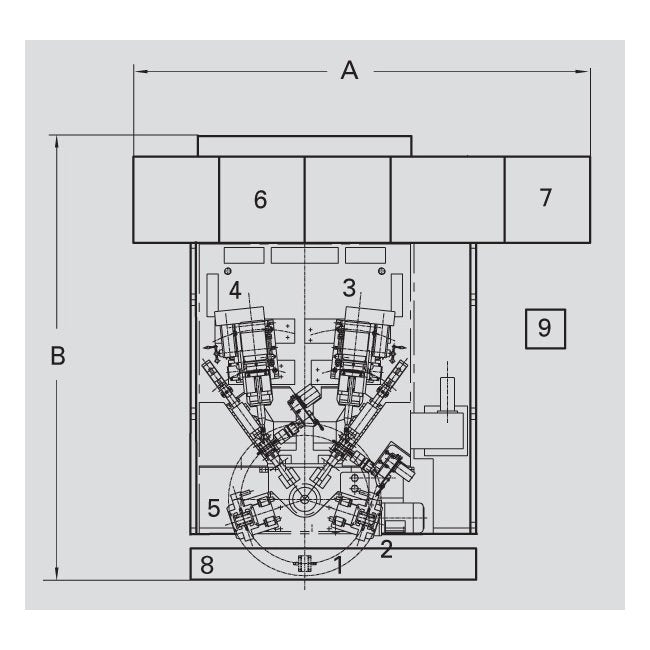

Machine Machine Depth B
2400 mm
Machine Machine Height C
2200 mm
Machine Machine Weight
6000 kg
Machine Machine Width A
2100 mm
Machine Note For Machine Dimensions
Data non-binding, dependent on the respective equipment supplied
Options Change Over Parts Order Number For Further Rotor Types
R0230107.01
Options Change Over Unit Order Number For Further Sets Of Grippe
R0230106.01
Options Chip Extractor 30 Kilowatt Kw Order Number
R0230102.01
Options Options
Change Over Parts for Further Rotor Types | Change Over Unit for Further Sets of Grippers | Chip Extractor 3.0 kW | OT Sliding Arm + Sep. OT Belt | Pallet Coding, Electronic | Pallet Coding, Mechanical
Options Ot Sliding Arm Sep Ot Belt Order Number
R0230103.01
Options Pallet Coding Electronic Order Number
R0230105.01
Options Pallet Coding Mechanical Order Number
R0230104.01
Range Of Application Range Of Application
Measurement and correction of unbalance in alternators of various sizes as well as similar rotors. Use of the machine in production lines with large production volumes.
Rotor Rotor Diameter
80 to 115 mm
Rotor Rotor Length
50 to 180 mm
Rotor Rotor Weight
0.3 to 5 kg
Sequence Of Operations Sequence Of Operations

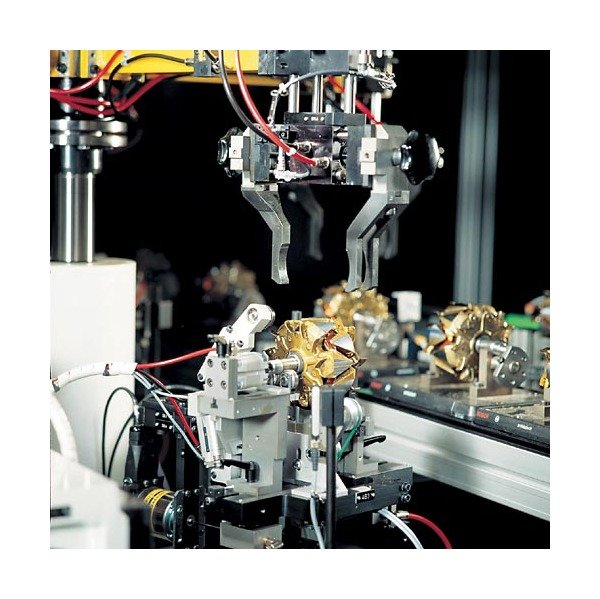

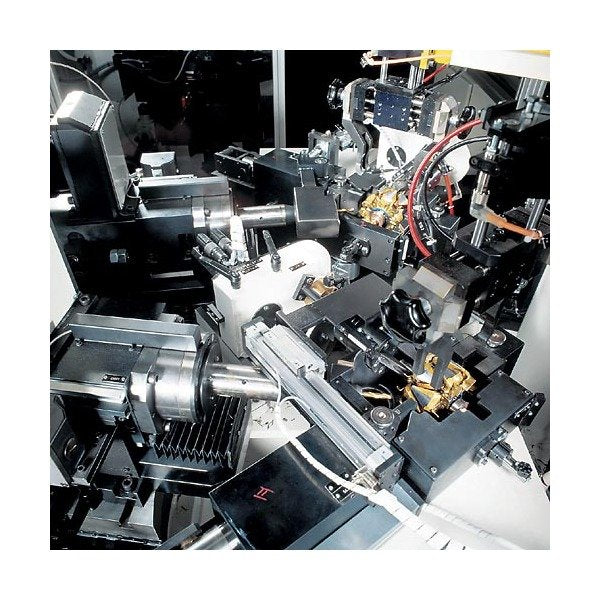

The lift-and-turn transport unit remains stationary with the carrying arm over the station. After starting, the gripper lowers and takes the rotors out of the individual stations, transports them through 72° over the following stations and lowers them.The empty transport unit returns to the starting position and the machine functions run fully-automatically and in parallel in the stations.Loading and unloading station:The transfer unit automatically removes a rotor from the in-feed and replaces it with one from the checking station. This rotor is transferred either to the exit conveyor or to the OT conveyor, or fed back to the machine for a second correction step.Measuring station:The rotor is accelerated to balancing speed, stopped and indexed to the correction angle.The unbalance value is calculated for correction and stored.Correction station:The rotor is indexed and corrected by polar or component drilling in 1 or 2 planes.Checking station:The rotor is accelerated to balancing speed and stopped. The unbalance values are calculated for further handling and stored. Rotors out of tolerance after the 2nd step (optional) that cannot be brought into tolerance are sorted out.
Specifications Achievable Tolerance
8 g/mm
Technical Data Air Consumption
6 m³/h
Technical Data Air Pressure
450 kPa
Technical Data Basic Machine Order Number
R0230100.01
Technical Data Benefits
Polar correction, inclined drilling
Technical Data Brands
SCHENCK
Technical Data Change Over Time
15 min | 20 min
Technical Data Cycle Time
10 to 12 seconds
Technical Data Measuring Uncertainty
1 to 2 g/mm
Technical Data Measuring Unit
CAB 850
Technical Data Power Consumption
13 kV·A
Technical Data Production Volume
300 st./h
