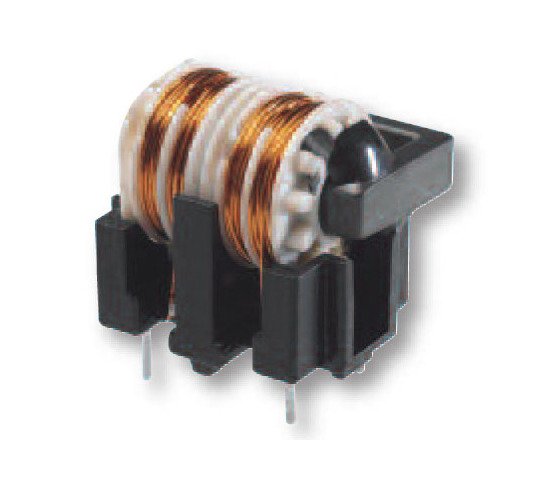

UT/ET Common Mode Inductors
UT/ET Common Mode Inductors
SKU:IND-17b1da
Reduce EMI and RFI with UT/ET Common Mode Inductors. High performance, low interference, and industry compliance.
Regular price
$22.50
Regular price
Sale price
$22.50
Unit price
per
Initiate Order
UT/ET Common Mode Inductors
$22.50
Quantity: 1
Claim Your Seller Account
UT/ET Common Mode Inductors
$22.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UT/ET Series Common Mode Inductors are essential components for reducing electromagnetic interference and radio frequency interference in electronic equipment. With features like low leakage flux, high impedance, and low stray capacitance, these inductors ensure optimal performance and reliability. Designed with a horizontal configuration, a high self-resonant frequency, and compliance with industry standards such as CSA, IEC, and UL, these inductors meet the stringent requirements of government and institutional buyers.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
0.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

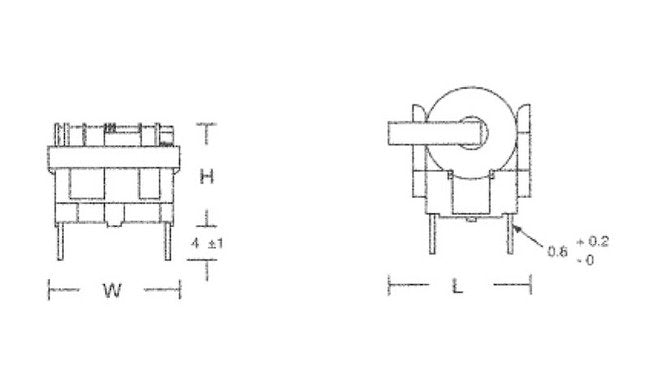

Specifications Height H
20 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23 mm
Specifications Max Dcr
1.4 Ohm
Specifications Max Inductance Difference
300 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
9.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.52 oz
Specifications Width W
24.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
