UT/ET Series Common Mode Choke Coils
UT/ET Series Common Mode Choke Coils
SKU:IND-f1eedf
Reduce EMI and RFI with UT/ET Series Choke Coils. High-performance, industry-compliant, and reliable.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
UT/ET Series Common Mode Choke Coils
$12.99
Quantity: 1
Claim Your Seller Account
UT/ET Series Common Mode Choke Coils
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your electronic equipment with our UT/ET Series Common Mode Choke Coils designed to effectively reduce electromagnetic interference and radio frequency interference. With features like low leakage flux, high self-resonant frequency, and low stray capacitance, these choke coils ensure optimal performance and reliability. Meeting industry standards such as CSA, IEC, and UL, these coils offer a configuration type of Vertical, a current rating of 0.6A, and a maximum operating temperature of 105ºC, making them ideal for a wide range of applications.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
0.6 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

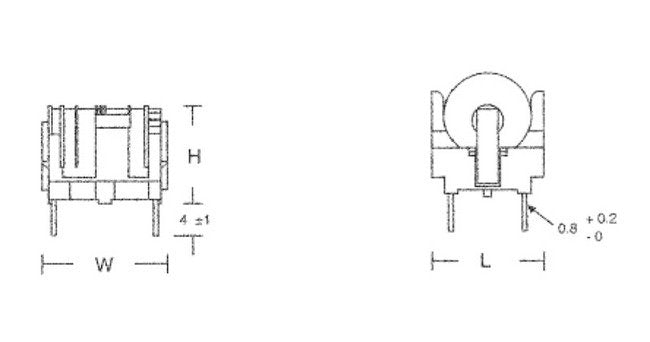

Specifications Height H
23.5 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
18.5 mm
Specifications Max Dcr
0.75 Ohm
Specifications Max Inductance Difference
250 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
4.50 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.52 oz
Specifications Width W
23 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
