UT/ET Series Common Mode Choke Coils
UT/ET Series Common Mode Choke Coils
SKU:IND-d13bef
Enhance performance with UT/ET Series Common Mode Choke Coils. Minimize EMI and RFI for reliable electronics operation.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
UT/ET Series Common Mode Choke Coils
$25.99
Quantity: 1
Claim Your Seller Account
UT/ET Series Common Mode Choke Coils
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

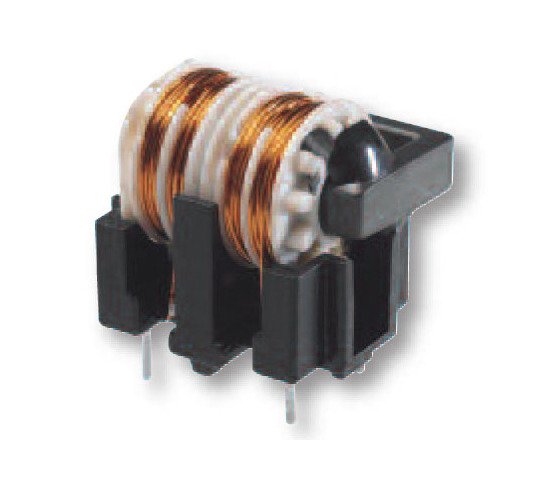

The UT/ET Series Common Mode Choke Coils are essential components for mitigating electromagnetic and radio frequency interference in power supply lines, ensuring optimal performance and reliability of electronic equipment. Featuring a horizontal configuration, a min. inductance of 2.50 mH, max. DCR of 0.4 Ohm, and high impedance at applicable frequencies, these choke coils are designed to minimize leakage flux and stray capacitance. With a sturdy construction meeting industry standards such as CSA, IEC, and UL, these coils offer high self-resonant frequency, low temperature rise, and reliable operation within -20 to 105 °C.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
0.7 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

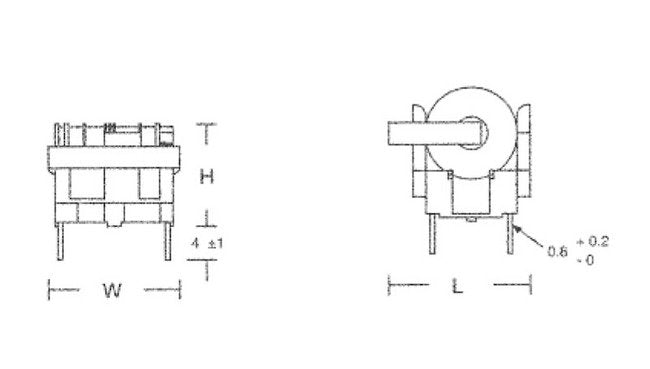

Specifications Height H
20 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23 mm
Specifications Max Dcr
0.4 Ohm
Specifications Max Inductance Difference
200 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
2.50 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.52 oz
Specifications Width W
24.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
