UT/ET Series Common Mode Choke Inductors
UT/ET Series Common Mode Choke Inductors
SKU:IND-998a5e
Enhance EMI and RFI protection with UT/ET Series Common Mode Choke Inductors. High performance and reliability for diverse applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
UT/ET Series Common Mode Choke Inductors
$24.99
Quantity: 1
Claim Your Seller Account
UT/ET Series Common Mode Choke Inductors
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

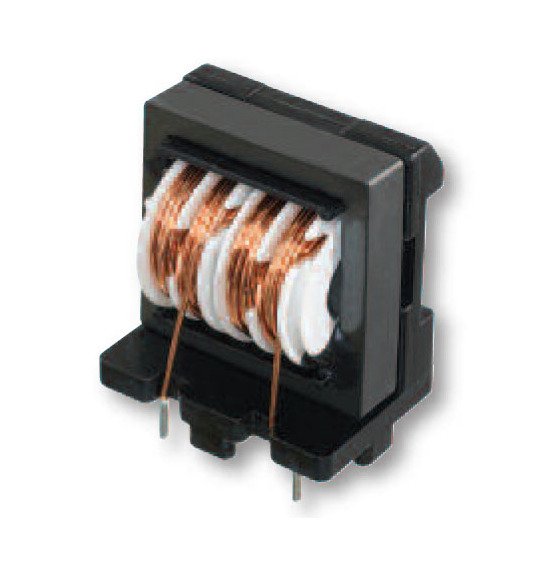

The UT/ET Series Common Mode Choke Inductors are essential in combating electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines and electronic equipment, ensuring optimal performance. With features like low leakage flux, high self-resonant frequency, and low stray capacitance, these inductors deliver reliable and efficient operation. Designed with a vertical configuration and meeting industry standards like CSA, IEC, and UL, these inductors offer a wide inductance range, low resistance, and excellent thermal performance. Ideal for consumer electronics and institutional applications, these inductors guarantee superior EMI suppression and signal integrity.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
0.7 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

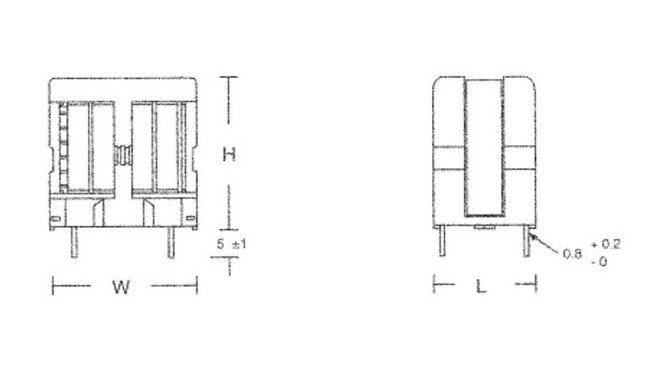

Specifications Height H
31 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
19.5 mm
Specifications Max Dcr
0.75 Ohm
Specifications Max Inductance Difference
300 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
9.20 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.88 oz
Specifications Width W
26.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
