The UT/ET Series Common Mode Inductors are essential components for preventing electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines, ensuring optimal performance of electronic equipment. With features including low leakage flux, high self-resonant frequency, and low stray capacitance, these inductors offer reliable EMI/RFI filtering. Designed with a vertical configuration, they exhibit a min. inductance of 0.45 mH, max. DCR of 0.13 Ohm, and operate within a temperature range of -20 to 105 ºC, meeting industry standards including CSA, IEC, and UL.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
1.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

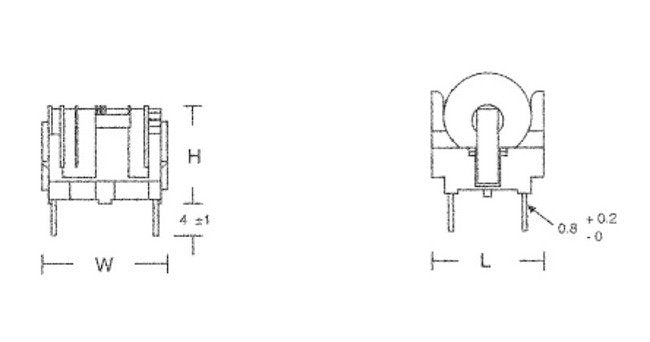

Specifications Height H
23.5 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
18.5 mm
Specifications Max Dcr
0.13 Ohm
Specifications Max Inductance Difference
100 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
0.45 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.52 oz
Specifications Width W
23 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
