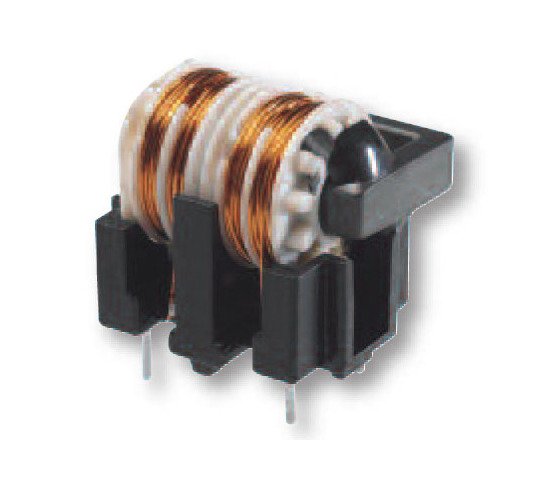

The UT/ET Series Common Mode Inductors are essential components for combating electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines and electronic equipment. With features like low leakage flux, high self-resonant frequency, and low stray capacitance, these inductors ensure reliable performance. Their horizontal configuration, high impedance, and wide operating temperature range make them ideal for various applications. Meeting industry standards such as CSA, IEC, and UL, these inductors guarantee quality and compliance for institutional buyers.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
1.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

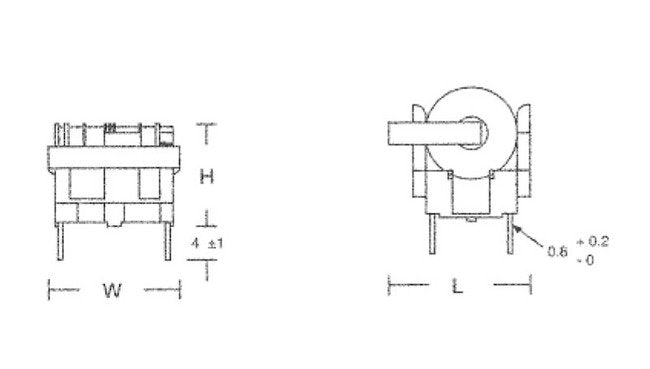

Specifications Height H
20 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23 mm
Specifications Max Dcr
0.13 Ohm
Specifications Max Inductance Difference
100 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
0.45 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.52 oz
Specifications Width W
24.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
