The UT/ET Series Common Mode Inductors are essential components for combatting electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines and electronic equipment. With features like low leakage flux, high self-resonant frequency, and low stray capacitance, these vertical configuration inductors offer reliable performance. With a Min. Inductance of 25.00 mH and Max. DCR of 0.6 Ohm, these inductors ensure optimal impedance and prevent malfunctioning. Ideal for a wide range of applications, these inductors meet industry standards including CSA, IEC, and UL.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
1.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

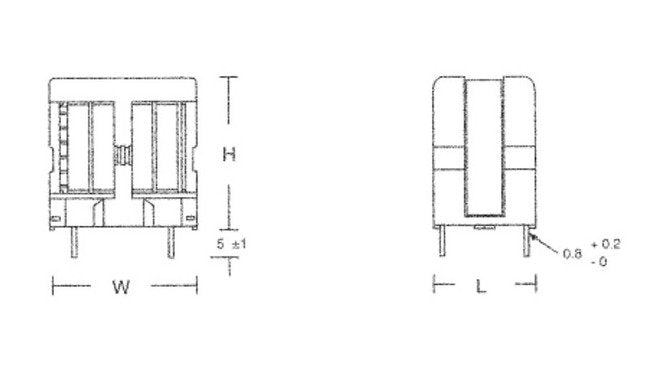

Specifications Height H
37 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23.5 mm
Specifications Max Dcr
0.6 Ohm
Specifications Max Inductance Difference
500 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
25.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
31.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
