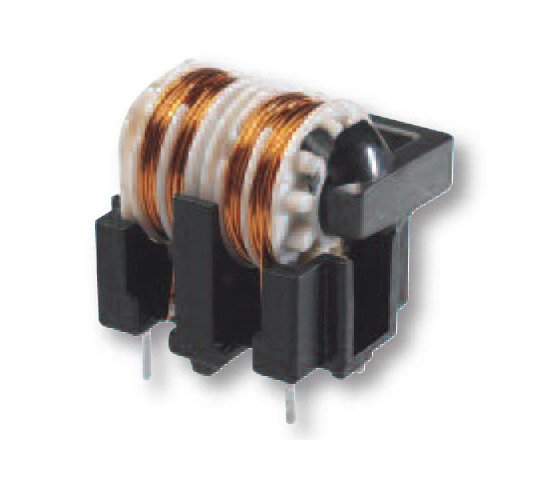

UT/ET Series Common Mode Inductors - EMI/RFI Protection
UT/ET Series Common Mode Inductors - EMI/RFI Protection
SKU:IND-863552
Reliable UT/ET Series Inductors for EMI/RFI Protection - Low leakage flux, high impedance, and optimal interference suppression.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
UT/ET Series Common Mode Inductors - EMI/RFI Protection
$29.99
Quantity: 1
Claim Your Seller Account
UT/ET Series Common Mode Inductors - EMI/RFI Protection
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UT/ET Series Common Mode Inductors are essential components for effectively preventing electromagnetic interference (EMI) and radio frequency interference (RFI) in various electronic applications. Designed with low leakage flux, high self-resonant frequency, and high impedance at applicable frequencies, these inductors ensure reliable protection for power supply lines and electronic equipment functionality. With low stray capacitance in section winding, these inductors offer superior performance in suppressing unwanted interference, maintaining signal integrity, and enhancing overall system efficiency.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
0.9 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

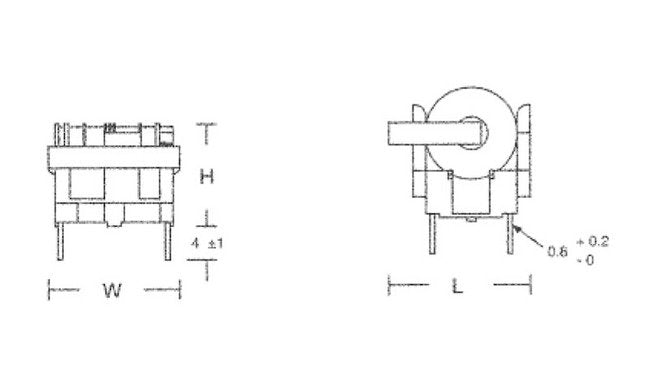

Specifications Height H
20 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23 mm
Specifications Max Dcr
0.25 Ohm
Specifications Max Inductance Difference
150 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
1.10 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.52 oz
Specifications Width W
24.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
