High-performance Common Mode Inductors for EMI/RFI suppression in electronic equipment.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The UT/ET Series Common Mode Inductors are essential components in mitigating electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines and electronic equipment. These inductors feature low leakage flux, high self-resonant frequency, and high impedance at applicable frequencies, ensuring optimal performance. With low stray capacitance in section winding, these inductors guarantee reliable EMI/RFI suppression, making them ideal for diverse applications.

Product Specifications

Specifications Configuration Type

Horizontal

Specifications Current Rating

0.6 A

Specifications Dielectric Withstanding Voltage Ac

2,000 V

Specifications Features

High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

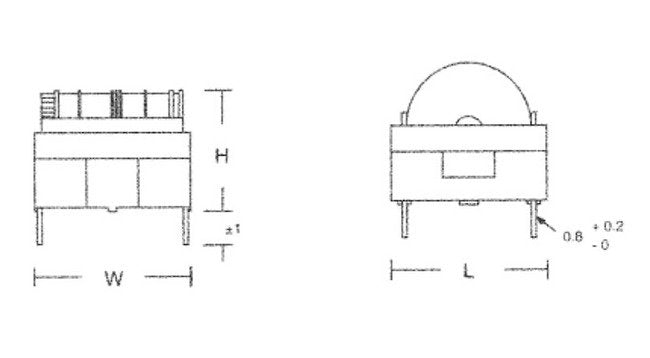

Specifications Height H

25 mm

Specifications Industry Standards

CSA | IEC | UL

Specifications Length L

30 mm

Specifications Max Dcr

2 Ohm

Specifications Max Inductance Difference

2,000 ÂµH

Specifications Max Temperature Rise

45 ÂºC

Specifications Min Inductance

92.00 mH

Specifications Min Insulation Resistance

100 mOhm

Specifications Operating Temperature Range

-20 to 105 ÂºC

Specifications Pin Mounting A

24.0 mm

Specifications Pin Mounting B

20.0 mm

Specifications Rated Voltage Ac

250 V

Specifications Weight

1.40 oz

Specifications Width W

30 mm

Technical Notes 0

The inductance difference measures between the coil L1 and L2.
