The UT/ET Series Common Mode Inductors are essential components for mitigating electromagnetic interference (EMI) and radio frequency interference (RFI) in various electronic equipment. With a configuration type of Vertical, these inductors offer a Min. Inductance of 1.10 mH and a Max. DCR of 0.25 Ohm, ensuring efficient performance. Their low leakage flux, high self-resonant frequency, and high impedance at the applicable frequency guarantee reliable EMI suppression. Meeting industry standards such as CSA, IEC, and UL, these inductors are designed to deliver superior performance and comply with stringent procurement requirements.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
0.9 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

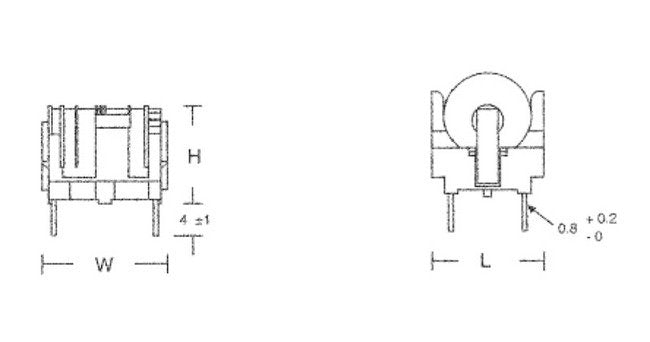

Specifications Height H
23.5 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
18.5 mm
Specifications Max Dcr
0.25 Ohm
Specifications Max Inductance Difference
150 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
1.10 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.52 oz
Specifications Width W
23 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
