UT/ET Series Common Mode Inductors - EMI/RFI Suppression
UT/ET Series Common Mode Inductors - EMI/RFI Suppression
SKU:IND-9302ba
Efficient EMI/RFI suppression in compact design. High impedance, low leakage flux. Meets CSA, IEC, UL standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
UT/ET Series Common Mode Inductors - EMI/RFI Suppression
$24.99
Quantity: 1
Claim Your Seller Account
UT/ET Series Common Mode Inductors - EMI/RFI Suppression
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

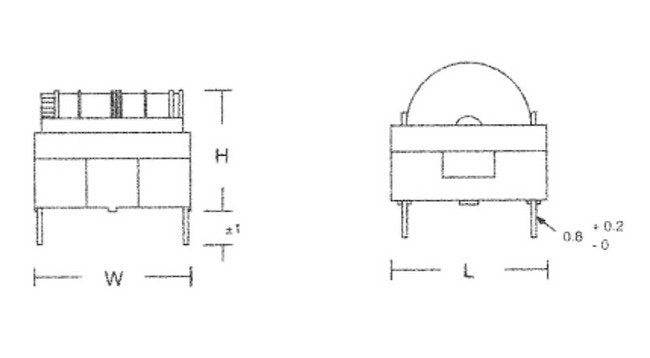

The UT/ET Series Common Mode Inductors are essential components for EMI/RFI suppression in various electronic applications. These inductors feature low leakage flux, high self-resonant frequency, and high impedance at applicable frequencies, ensuring optimal performance in preventing electromagnetic interference. With a min. inductance of 8.00 mH and max. DCR of 0.19 Ohm, these inductors are designed for reliability and efficiency. Meeting industry standards such as CSA, IEC, and UL, they offer a compact design with dimensions of 30mm (W) x 30mm (L) x 25mm (H) and a rated voltage of 250V AC.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
2.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding
Specifications Height H
25 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
30 mm
Specifications Max Dcr
0.19 Ohm
Specifications Max Inductance Difference
150 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
8.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
24.0 mm
Specifications Pin Mounting B
20.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
30 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
