UT/ET Series Common Mode Inductors - EMI/RFI Suppression Chokes

Name: UT/ET Series Common Mode Inductors - EMI/RFI Suppression Chokes
Brand: Triad Magnetics
SKU: IND-11287d
Price: 14.99 USD
Availability: OutOfStock

SKU:IND-11287d

Essential EMI/RFI suppression inductors for reliable performance in electronic systems.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

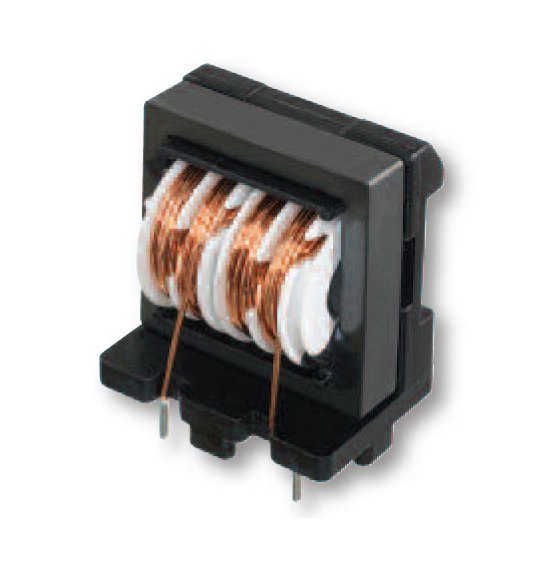

The UT/ET Series Common Mode Inductors are essential components for EMI and RFI suppression in a variety of applications. Designed to prevent electromagnetic interference and radio frequency interference on power supply lines, these inductors feature low leakage flux, high impedance, and low stray capacitance. With a vertical configuration, min. inductance of 3.20 mH, and high self-resonant frequency, they ensure reliable performance in critical electronic systems.

Product Specifications

Specifications Configuration Type

Vertical

Specifications Current Rating

2.00 A

Specifications Dielectric Withstanding Voltage Ac

2,000 V

Specifications Features

Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

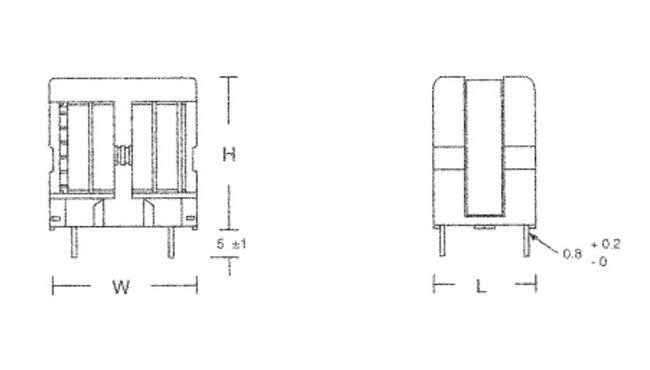

Specifications Height H

31 mm

Specifications Industry Standards

CSA | IEC | UL

Specifications Length L

19.5 mm

Specifications Max Dcr

0.2 Ohm

Specifications Max Inductance Difference

100 ÂµH

Specifications Max Temperature Rise

45 ÂºC

Specifications Min Inductance

3.20 mH

Specifications Min Insulation Resistance

100 mOhm

Specifications Operating Temperature Range

-20 to 105 ÂºC

Specifications Pin Mounting A

13.0 mm

Specifications Pin Mounting B

10.0 mm

Specifications Rated Voltage Ac

250 V

Specifications Weight

0.88 oz

Specifications Width W

26.5 mm

Technical Notes 0

The inductance difference measures between the coil L1 and L2.
