UT/ET Series Common Mode Inductors - EMI/RFI Suppression Coils
UT/ET Series Common Mode Inductors - EMI/RFI Suppression Coils
SKU:IND-2d0143
High-performance Common Mode Inductors for EMI/RFI suppression in essential electronic equipment.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
UT/ET Series Common Mode Inductors - EMI/RFI Suppression Coils
$14.99
Quantity: 1
Claim Your Seller Account
UT/ET Series Common Mode Inductors - EMI/RFI Suppression Coils
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UT/ET Series Common Mode Inductors are essential components for EMI and RFI suppression in a variety of applications, ensuring the prevention of electromagnetic interference and radio frequency interference. These inductors feature low leakage flux, a high self-resonant frequency, and high impedance at applicable frequencies, guaranteeing optimal performance. With a vertical configuration and specifications including a min. inductance of 24.00 mH, max. DCR of 1.6 Ohm, and rated voltage of 250 V AC, these inductors are designed for efficiency and reliability.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
0.6 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

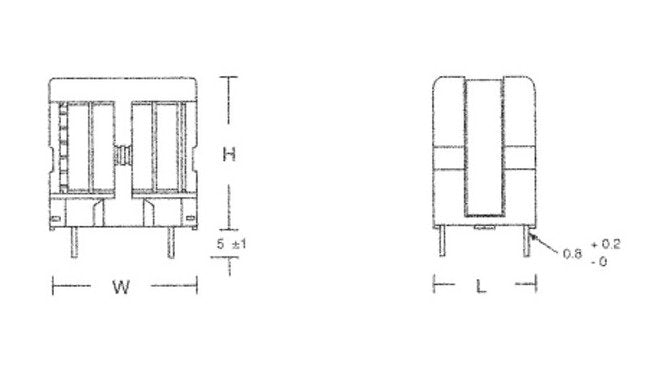

Specifications Height H
31 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
19.5 mm
Specifications Max Dcr
1.6 Ohm
Specifications Max Inductance Difference
350 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
24.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.88 oz
Specifications Width W
26.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
