UT/ET Series Common Mode Inductors - EMI/RFI Suppression Coils
UT/ET Series Common Mode Inductors - EMI/RFI Suppression Coils
SKU:IND-f604f0
UT/ET Series Common Mode Inductors - Ideal for EMI/RFI Suppression. Low leakage flux, high impedance & compliance with industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
UT/ET Series Common Mode Inductors - EMI/RFI Suppression Coils
$29.99
Quantity: 1
Claim Your Seller Account
UT/ET Series Common Mode Inductors - EMI/RFI Suppression Coils
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

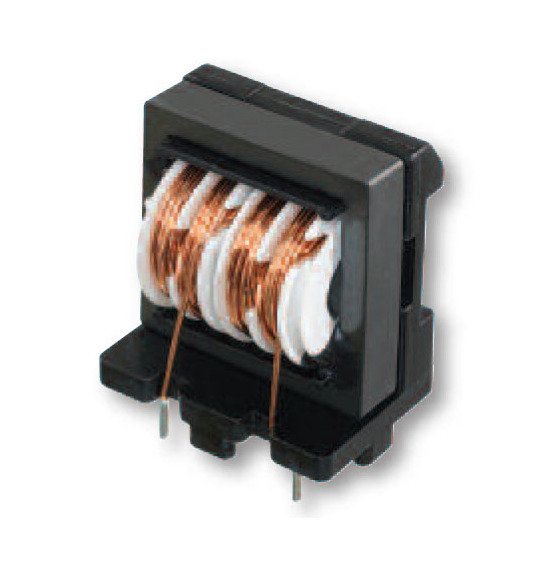

The UT/ET Series Common Mode Inductors are essential components for EMI and RFI suppression in various electronic applications. Designed to reduce electromagnetic interference and prevent malfunctions, these inductors feature low leakage flux, high self-resonant frequency, high impedance, and low stray capacitance. With a Configuration Type of Vertical, these inductors offer a Min. Inductance of 33.00 mH, Max. DCR of 0.5 Ohm, and a Current Rating of 1.50 A. Compliant with industry standards including CSA, IEC, and UL, these inductors ensure reliable performance and durability.
Product Specifications
Specifications Configuration Type
Vertical
Specifications Current Rating
1.50 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding
Specifications Industry Standards
CSA | IEC | UL
Specifications Max Dcr
0.5 Ohm

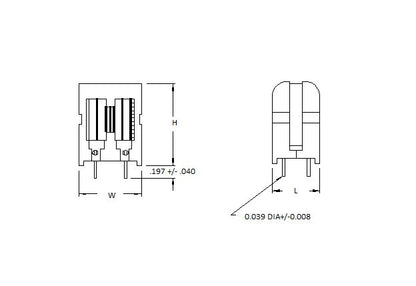

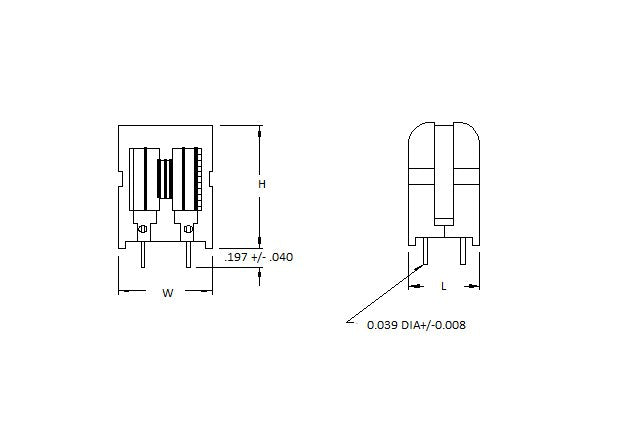

Specifications Max Height H
1.73 in | 43.94 mm
Specifications Max Inductance Difference
1,000 µH
Specifications Max Length L
1.06 in | 26.92 mm
Specifications Max Temperature Rise
45 ºC
Specifications Max Width W
1.46 in | 37.08 mm
Specifications Min Inductance
33.00 mH
Specifications Min Insulation Resistance
100 mOhm

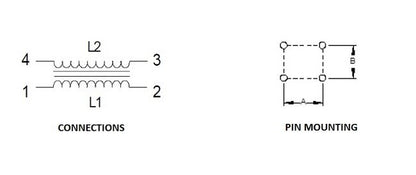

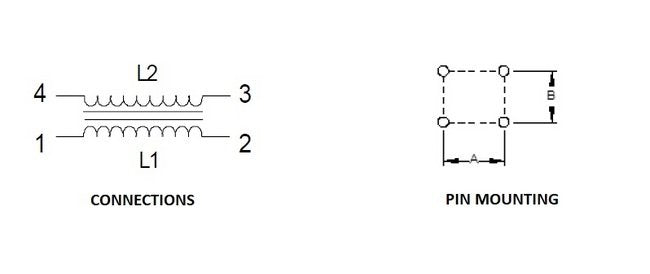

Specifications Nominal Pin Mounting A
0.827 in | 21.00 mm
Specifications Nominal Pin Mounting B
0.591 in | 15.01 mm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Rated Voltage Ac
250 V
Specifications Weight
2.60 oz
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
