UT/ET Series Common Mode Inductors - EMI/RMI Protection
UT/ET Series Common Mode Inductors - EMI/RMI Protection
SKU:IND-a9d9f8
Combat EMI/RMI effectively with UT/ET Series Inductors. Reliable, high impedance, and industry-compliant for up to 250V AC applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
UT/ET Series Common Mode Inductors - EMI/RMI Protection
$14.99
Quantity: 1
Claim Your Seller Account
UT/ET Series Common Mode Inductors - EMI/RMI Protection
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UT/ET Series Common Mode Inductors are essential components for effectively combating electromagnetic interference (EMI) and radio frequency interference (RFI) on power supply lines and electronic equipment. With features like low leakage flux, high self-resonant frequency, and low stray capacitance, these inductors ensure reliable performance. Their horizontal configuration, high impedance, and stringent adherence to industry standards such as CSA, IEC, and UL make them ideal for diverse applications requiring up to 250V AC rating. Trust these inductors to deliver exceptional performance even in demanding environments.
Product Specifications
Specifications Configuration Type
Horizontal
Specifications Current Rating
2.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
High Impedance at Applicable Frequency | High Self-Resonant Frequency | Low Leakage Flux | Low Stray Capacitance in Section Winding

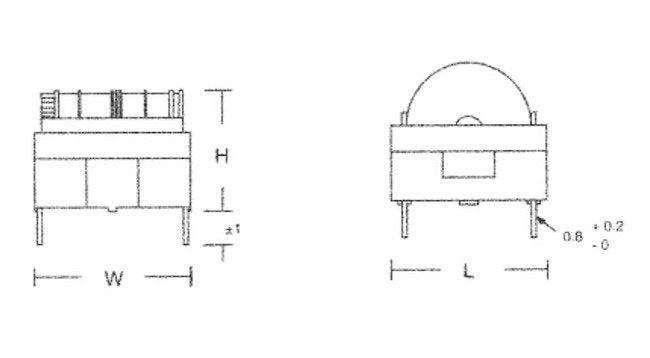

Specifications Height H
23 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
26.5 mm
Specifications Max Dcr
0.2 Ohm
Specifications Max Inductance Difference
100 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
3.20 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
21.0 mm
Specifications Pin Mounting B
15.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
0.88 oz
Specifications Width W
26.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
