Triad Magnetics →

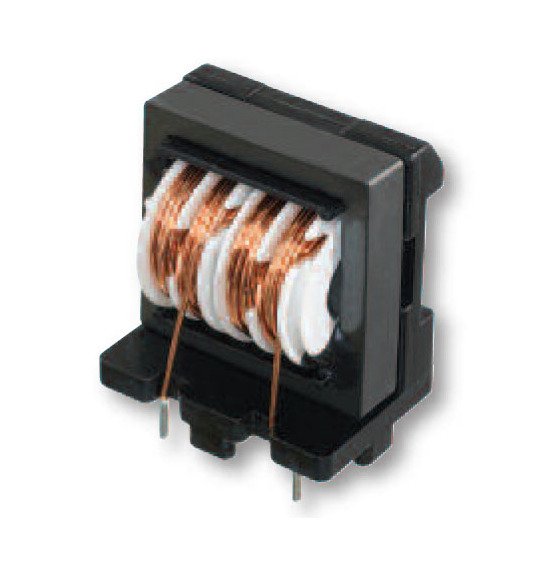

UT/ET Series EMI/RMI Common Mode Choke Coils

UT/ET Series EMI/RMI Common Mode Choke Coils

SKU:IND-3bf3ea

Combat EMI/RFI effectively with UT/ET Series Common Mode Choke Coils, featuring low leakage flux and high impedance. Ideal for various electronic applications.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

UT/ET Series EMI/RMI Common Mode Choke Coils

UT/ET Series EMI/RMI Common Mode Choke Coils

$24.99

Quantity: 1

Claim Your Seller Account

UT/ET Series EMI/RMI Common Mode Choke Coils

UT/ET Series EMI/RMI Common Mode Choke Coils

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The UT/ET Series Common Mode Inductors are essential components in combating electromagnetic interference (EMI) and radio frequency interference (RFI) in power supply lines and electronic equipment. With features like low leakage flux, high self-resonant frequency, and low stray capacitance, these vertical configuration choke coils offer high impedance at applicable frequencies. With a minimum inductance of 5.00 mH, max DCR of 0.1 Ohm, and a current rating of 3.00 A, these choke coils are designed to meet stringent industry standards such as CSA, IEC, and UL.

Product Specifications

Specifications Configuration Type
Vertical
Specifications Current Rating
3.00 A
Specifications Dielectric Withstanding Voltage Ac
2,000 V
Specifications Features
Low Leakage FluxHigh Self-Resonant FrequencyHigh Impedance at Applicable FrequencyLow Stray Capacitance in Section Winding

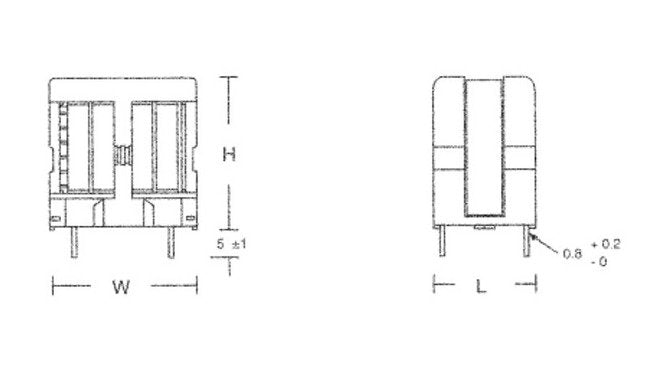

Specifications Height H
37 mm
Specifications Industry Standards
CSA | IEC | UL
Specifications Length L
23.5 mm
Specifications Max Dcr
0.1 Ohm
Specifications Max Inductance Difference
100 µH
Specifications Max Temperature Rise
45 ºC
Specifications Min Inductance
5.00 mH
Specifications Min Insulation Resistance
100 mOhm
Specifications Operating Temperature Range
-20 to 105 ºC
Specifications Pin Mounting A
13.0 mm
Specifications Pin Mounting B
10.0 mm
Specifications Rated Voltage Ac
250 V
Specifications Weight
1.40 oz
Specifications Width W
31.5 mm
Technical Notes 0
The inductance difference measures between the coil L1 and L2.
