UtiliTrak SW Series Vee Channel, Size 2, Steel, 1360mm Length
UtiliTrak SW Series Vee Channel, Size 2, Steel, 1360mm Length
SKU:VOO-6a2771
High-quality UtiliTrak Vee Channel, perfect for medium to heavy duty applications. Steel construction, 1360mm length, Vee profile design.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
UtiliTrak SW Series Vee Channel, Size 2, Steel, 1360mm Length
$89.99
Quantity: 1
Claim Your Seller Account
UtiliTrak SW Series Vee Channel, Size 2, Steel, 1360mm Length
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UtiliTrak SW Series Vee Channel in Size 2 offers a reliable linear guide track solution for medium to heavy duty applications. Crafted from high-quality AISI 52100 carbon steel, this channel features a Vee profile design for enhanced precision. With 17 predrilled mounting holes and a standard length of 1360mm, it provides ease of installation and flexibility. Ideal for institutional and government buyers looking for durable and efficient linear motion components.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

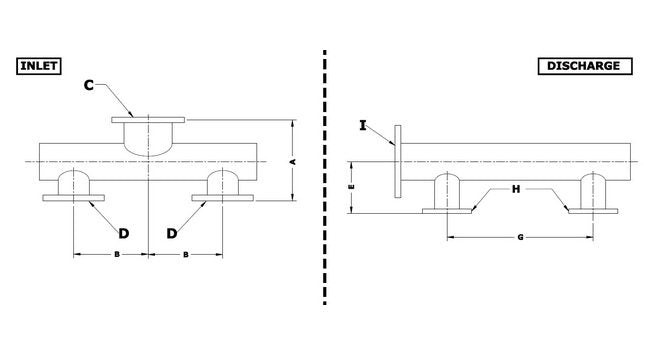

Dimension Discharge Flange Size H
8 x 13 in
Dimension Discharge Flange Size I
10 x 16 in | 250 x 395 mm
Dimension Discharge Size E
11 in | 279 mm
Dimension Discharge Size F
11 in | 279 mm
Dimension Discharge Size G
50-1/4 in
Dimension Inlet Flange Size C
12 x 19 in | 300 x 445 mm
Dimension Inlet Flange Size D
10 x 16 in
Dimension Inlet Size A
24 in
Dimension Inlet Size B
25-7/8 in | 657 mm

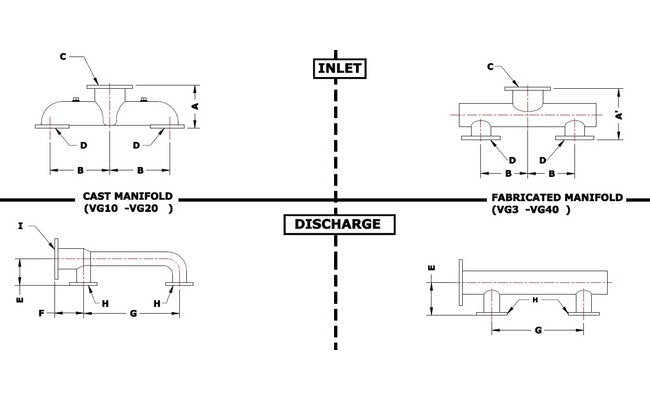

Dimension Note For Dimension
Bolt Holes Straddle Center LineProcess Connection Flanges Flat Faced with DIN Bolt PatternAll Flanges Flat Faced with ANSI Bolt PatternCast Manifolds are Constructed Out of CIFabricated Manifolds are Constructed of CS, 304SS or 316SS
Material Construction Features Bearing Carrier Material
Carbon Steel
Material Construction Features Cone Material
304 Cast Stainless Steel (SS)
Material Construction Features Head Material
304 Cast Stainless Steel (SS)
Material Construction Features Housing Material
304 Cast Stainless Steel (SS)
Material Construction Features Package Gland Studs And Nuts Mate
316 Cast Stainless Steel (SS)
Material Construction Features Rotor Material
304 Cast Stainless Steel (SS)
Material Construction Features Shaft Material
316 Cast Stainless Steel (SS)
Specifications Approximate Pump Weight
4015 kg
Specifications Bearing Design
Timken tapered roller bearing, external, grease lubricated. Type: Timken Assembly 90220, 74550 Cone, 74851CD Cup, X1S-74550 Spacer
Specifications Certifications
German Institute for Standardization (DIN)
Specifications Cone Opening Vacuum Level
Medium (M)
Specifications Manifold Inlet Flange Connection Size
300 mm
Specifications Manifold Outlet Flange Connection Size
250 mm
Specifications Nominal Sealing Liquid Flow Rate At 20 To 24 Inch
190 to 240 L/min
Specifications Pump Inlet Flange Connection Size
250 mm
Specifications Pump Outlet Flange Connection Size
200 mm
Specifications Sealing Liquid Connection Size
1-1/2 in
Specifications Sealing Liquid Connection Type
National Pipe Thread (NPT)
Specifications Shaft Diameter Drive End
133.4 mm
Specifications Shaft Sealing
Packing
Specifications Type
Single stage rotor, cone shape ports, liquid ring vacuum pump
