UtiliTrak SW Series Vee Channel, Size 3, Steel, 2080mm Length
UtiliTrak SW Series Vee Channel, Size 3, Steel, 2080mm Length
SKU:VOO-c2bd1f
Enhance linear motion with the UtiliTrak SW Series Vee Channel. Made of AISI 52100 carbon steel, 2080mm length, Vee profile, 26 holes.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
UtiliTrak SW Series Vee Channel, Size 3, Steel, 2080mm Length
$89.99
Quantity: 1
Claim Your Seller Account
UtiliTrak SW Series Vee Channel, Size 3, Steel, 2080mm Length
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UtiliTrak SW Series Vee Channel in Size 3 offers a reliable linear guide track designed for medium to heavy-duty applications. Constructed from high-quality AISI 52100 carbon steel, this Vee profile channel comes predrilled with 26 mounting holes for easy installation. With a standard length of 2080mm, it ensures precision and durability in diverse industrial settings. Ideal for ensuring smooth linear motion and stability in various equipment and machinery.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

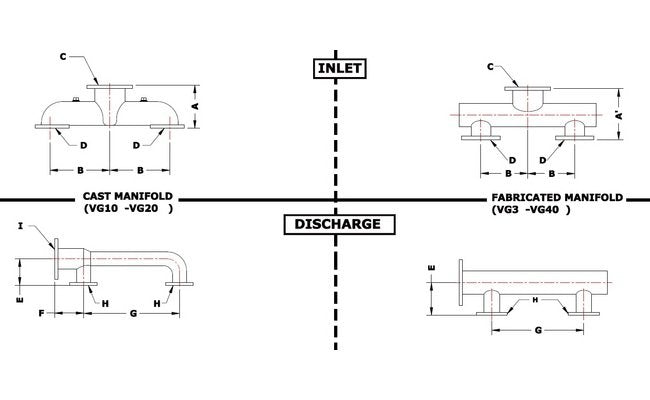

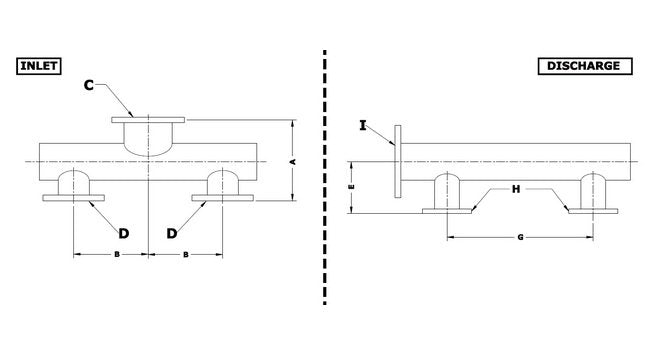

Dimension Discharge Flange Size H
3 x 7-1/2 in
Dimension Discharge Flange Size I
4 x 9 in | 100 x 220 mm
Dimension Discharge Size E
5-1/4 in | 133 mm
Dimension Discharge Size F
5-3/4 in | 146 mm
Dimension Discharge Size G
21-1/4 in
Dimension Inlet Flange Size C
6 x 11 in | 150 x 285 mm
Dimension Inlet Flange Size D
4 x 9 in
Dimension Inlet Size A
11 in
Dimension Inlet Size B
10-5/8 in | 270 mm
Dimension Note For Dimension
Bolt Holes Straddle Center LineProcess Connection Flanges Flat Faced with DIN Bolt PatternAll Flanges Flat Faced with ANSI Bolt PatternCast Manifolds are Constructed Out of CIFabricated Manifolds are Constructed of CS, 304SS or 316SS
Material Construction Features Bearing Carrier Material
Carbon Steel
Material Construction Features Cone Material
316 Cast Stainless Steel (SS)
Material Construction Features Head Material
316 Cast Stainless Steel (SS)
Material Construction Features Housing Material
316 Cast Stainless Steel (SS)
Material Construction Features Package Gland Studs And Nuts Mate
316 Cast Stainless Steel (SS)
Material Construction Features Rotor Material
316 Cast Stainless Steel (SS)
Material Construction Features Shaft Material
316 Cast Stainless Steel (SS)
Specifications Approximate Pump Weight
900 lb | 410 kg
Specifications Bearing Design
Double row spherical roller bearing, external, grease lubricated, Type: NSK 21311EAE4
Specifications Certifications
German Institute for Standardization (DIN)
Specifications Cone Opening Vacuum Level
Low (L)
Specifications Manifold Inlet Flange Connection Size
6 in | 150 mm
Specifications Manifold Outlet Flange Connection Size
4 in | 100 mm
Specifications Nominal Sealing Liquid Flow Rate At 15 Inch In Me
40 L/min | 10 g/min
Specifications Pump Inlet Flange Connection Size
4 in | 100 mm
Specifications Pump Outlet Flange Connection Size
3 in | 80 mm
Specifications Sealing Liquid Connection Size
1 in
Specifications Sealing Liquid Connection Type
National Pipe Thread (NPT)
Specifications Shaft Diameter Drive End
2 in | 50.8 mm
Specifications Shaft Sealing
Packing
Specifications Type
Single stage rotor, cone shape ports, liquid ring vacuum pump
Test Data Conditions Absolute Barometric Pressure
760 mmHg | 29.92 inHg
Test Data Conditions Inlet Gas Temperature
15.6 ºC | 60 ºF
Test Data Conditions Relative Humidity
50 %
Test Data Conditions Sealing Liquid Temperature
15.6 ºC | 60 ºF
