UtiliTrak SW Series Vee Channel, Size 3, Steel, 880mm Length, 11 Holes
UtiliTrak SW Series Vee Channel, Size 3, Steel, 880mm Length, 11 Holes
SKU:VOO-fe93cb
UtiliTrak SW Series Vee Channel: Size 3, Steel, 880mm Length, Vee Profile - Ideal for heavy-duty applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
UtiliTrak SW Series Vee Channel, Size 3, Steel, 880mm Length, 11 Holes
$129.99
Quantity: 1
Claim Your Seller Account
UtiliTrak SW Series Vee Channel, Size 3, Steel, 880mm Length, 11 Holes
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UtiliTrak SW Series Vee Channel in Size 3 offers a robust linear guide track solution for medium to heavy-duty applications. Crafted from high-grade AISI 52100 carbon steel, this channel features a Vee profile design for enhanced stability. With 11 predrilled mounting holes, installation is efficient and precise. Cut to a standard length of 880mm, this channel ensures reliable performance and durability, making it ideal for industrial and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

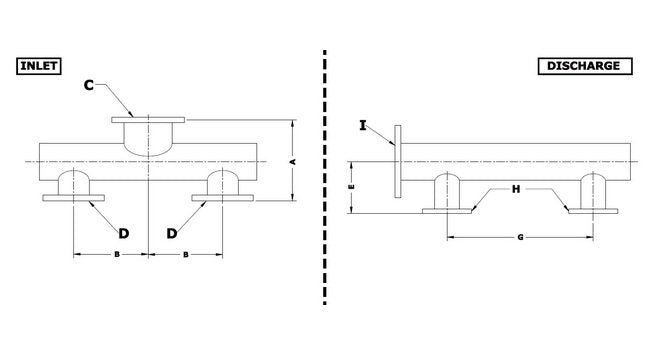

Dimension Discharge Flange Size H
8 x 13 in
Dimension Discharge Flange Size I
10 x 16 in | 250 x 395 mm
Dimension Discharge Size E
11 in | 279 mm
Dimension Discharge Size F
11 in | 279 mm
Dimension Discharge Size G
50-1/4 in
Dimension Inlet Flange Size C
12 x 19 in | 300 x 445 mm
Dimension Inlet Flange Size D
10 x 16 in
Dimension Inlet Size A
24 in
Dimension Inlet Size B
25-7/8 in | 657 mm
Dimension Note For Dimension
Bolt Holes Straddle Center LineProcess Connection Flanges Flat Faced with DIN Bolt PatternAll Flanges Flat Faced with ANSI Bolt PatternCast Manifolds are Constructed Out of CIFabricated Manifolds are Constructed of CS, 304SS or 316SS
Material Construction Features Bearing Carrier Material
Carbon Steel
Material Construction Features Cone Material
304 Cast Stainless Steel (SS)
Material Construction Features Head Material
Cast Iron
Material Construction Features Housing Material
Cast Iron
Material Construction Features Package Gland Studs And Nuts Mate
316 Cast Stainless Steel (SS)
Material Construction Features Rotor Material
304 Cast Stainless Steel (SS)
Material Construction Features Shaft Material
410 Heat Treated (HT) Cast Stainless Steel (SS)
Specifications Approximate Pump Weight
4015 kg
Specifications Bearing Design
Timken tapered roller bearing, external, grease lubricated. Type: Timken Assembly 90220, 74550 Cone, 74851CD Cup, X1S-74550 Spacer
Specifications Certifications
German Institute for Standardization (DIN)
Specifications Cone Opening Vacuum Level
High (H)
Specifications Manifold Inlet Flange Connection Size
300 mm
Specifications Manifold Outlet Flange Connection Size
250 mm
Specifications Nominal Sealing Liquid Flow Rate At 24 To 26 Inch
240 to 380 L/min
Specifications Pump Inlet Flange Connection Size
250 mm
Specifications Pump Outlet Flange Connection Size
200 mm
Specifications Sealing Liquid Connection Size
1-1/2 in
Specifications Sealing Liquid Connection Type
National Pipe Thread (NPT)
Specifications Shaft Diameter Drive End
133.4 mm
Specifications Shaft Sealing
Packing
Specifications Type
Single stage rotor, cone shape ports, liquid ring vacuum pump
