UtiliTrak® PW Series Wheel Plate Size 0, 4-Wheel Polymer Assembly
UtiliTrak® PW Series Wheel Plate Size 0, 4-Wheel Polymer Assembly
SKU:VOO-d68540
UtiliTrak® PW Series Wheel Plate - Size 0, 4-Wheel Polymer Assembly: Smooth, quiet operation & adaptable fit-up.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
UtiliTrak® PW Series Wheel Plate Size 0, 4-Wheel Polymer Assembly
$59.99
Quantity: 1
Claim Your Seller Account
UtiliTrak® PW Series Wheel Plate Size 0, 4-Wheel Polymer Assembly
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UtiliTrak® PW Series Wheel Plate in Size 0 features a 90º Vee design with 4 polymer wheels, including 2 fixed concentric wheels and 1 adjustable eccentric wheel for precise fit-up adjustments. Constructed from durable materials, this compact bearing block assembly is designed for heavy load applications in corrosive environments, ensuring smooth and quiet operation. With threaded hole patterns for easy attachment and optional position locking brake, it offers reliable performance and adaptability in various linear guide track setups.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

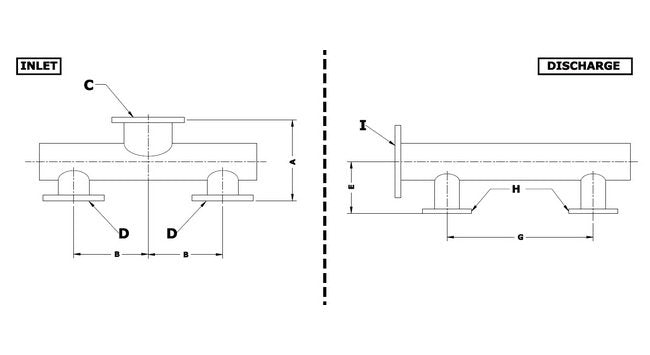

Dimension Discharge Flange Size H
3 x 7-1/2 in
Dimension Discharge Flange Size I
4 x 9 in | 100 x 220 mm
Dimension Discharge Size E
5-1/4 in | 133 mm
Dimension Discharge Size F
5-3/4 in | 146 mm
Dimension Discharge Size G
21-1/4 in
Dimension Inlet Flange Size C
6 x 11 in | 150 x 285 mm
Dimension Inlet Flange Size D
4 x 9 in
Dimension Inlet Size A
11 in
Dimension Inlet Size B
10-5/8 in | 270 mm

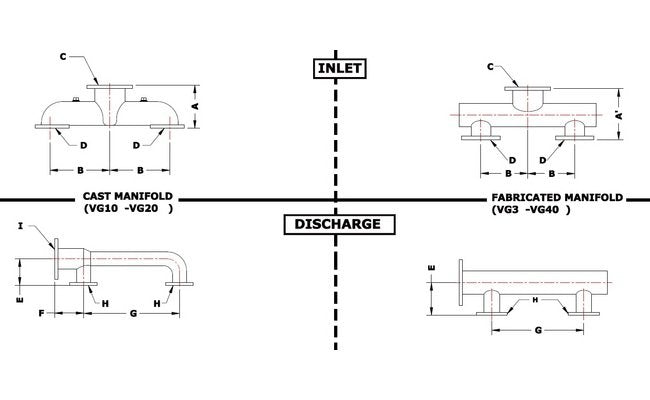

Dimension Note For Dimension
Bolt Holes Straddle Center LineProcess Connection Flanges Flat Faced with DIN Bolt PatternAll Flanges Flat Faced with ANSI Bolt PatternCast Manifolds are Constructed Out of CIFabricated Manifolds are Constructed of CS, 304SS or 316SS
Material Construction Features Bearing Carrier Material
Carbon Steel
Material Construction Features Cone Material
304 Cast Stainless Steel (SS)
Material Construction Features Head Material
304 Cast Stainless Steel (SS)
Material Construction Features Housing Material
304 Cast Stainless Steel (SS)
Material Construction Features Package Gland Studs And Nuts Mate
316 Cast Stainless Steel (SS)
Material Construction Features Rotor Material
304 Cast Stainless Steel (SS)
Material Construction Features Shaft Material
316 Cast Stainless Steel (SS)
Specifications Approximate Pump Weight
900 lb | 410 kg
Specifications Bearing Design
Double row spherical roller bearing, external, grease lubricated, Type: NSK 21311EAE4
Specifications Certifications
German Institute for Standardization (DIN)
Specifications Cone Opening Vacuum Level
High (H)
Specifications Manifold Inlet Flange Connection Size
6 in | 150 mm
Specifications Manifold Outlet Flange Connection Size
4 in | 100 mm
Specifications Nominal Sealing Liquid Flow Rate At 24 To 26 Inch
75 L/min | 20 g/min
Specifications Pump Inlet Flange Connection Size
4 in | 100 mm
Specifications Pump Outlet Flange Connection Size
3 in | 80 mm
Specifications Sealing Liquid Connection Size
1 in
Specifications Sealing Liquid Connection Type
National Pipe Thread (NPT)
Specifications Shaft Diameter Drive End
2 in | 50.8 mm
Specifications Shaft Sealing
Packing
Specifications Type
Single stage rotor, cone shape ports, liquid ring vacuum pump
Test Data Conditions Absolute Barometric Pressure
760 mmHg | 29.92 inHg
Test Data Conditions Inlet Gas Temperature
15.6 ºC | 60 ºF
Test Data Conditions Relative Humidity
50 %
Test Data Conditions Sealing Liquid Temperature
15.6 ºC | 60 ºF
